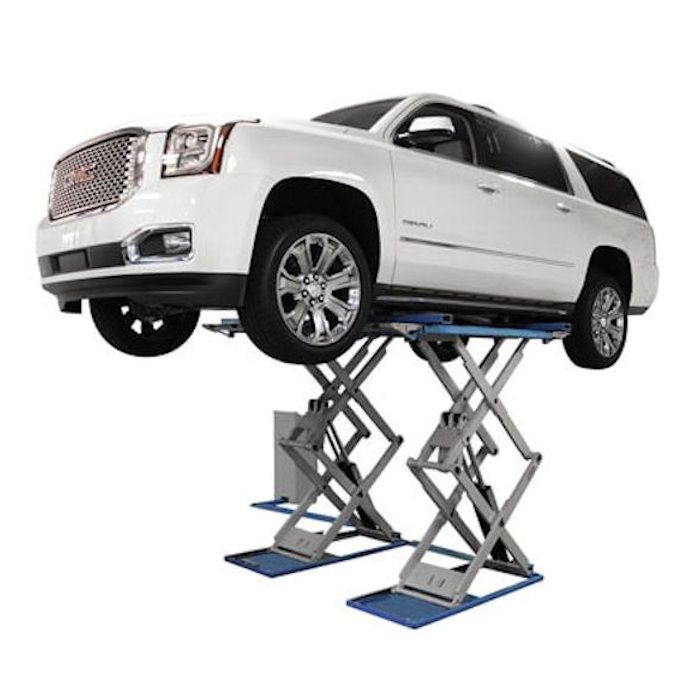

Atlas SLP-9K Commercial Grade Full Rise Scissor Lift

In stock
SKU
ATTD-SLP9K
Our Price $8,799.00 Regular Price $9,270.00

Atlas SLP-9K Commercial Grade Full Rise Scissor Lift
9,000 lb. Capacity

The Atlas SLP-9K full rise scissor lift combines an extremely low lift platform height and a 78 inch full rise scissor jack system. This full rise scissor lift is the perfect above ground lift for those customers with ceiling height restrictions and the need for “enough lift” to raise pick-up trucks.

Description

Atlas Automotive Equipment

Atlas SLP-9K Commercial Grade Full Rise Scissor Lift
9,000 lb. Capacity

The Atlas SLP-9K full rise scissor lift combines an extremely low lift platform height and a 78 inch full rise scissor jack system. The Atlas SLP-9K full rise scissor lift is the perfect above ground lift for those customers with ceiling height restrictions and the need for "enough lift" to raise pick-up trucks. This Atlas full rise scissor lift is also perfect for those service shops that want to avoid the cluttered look of dozens of vertical lift columns.

The Atlas SLP-9K can also be flush mounted. The flush mounted scissor lift gives the service area a "clean look" and also provides a "flat surface" which can be driven over from any angle, making it easy to position the vehicle over the lifting platforms.

The 31" adjustable distance between the lift platforms of the Atlas SLP-9K scissor lift can accommodate a full frame, uni-body, or SUV (truck) lifting points.

It is highly recommended that you purchase the Atlas Scissor Lift Support Bars if the intended use is for lifting heavier vehicles (pickup trucks and SUVs) with narrow frames.

The best way to position any vehicle on a scissor lift (with horizontal cylinders) is to allow some space (2-6 inches) between the lifting surface of the lift and vehicle’s lifting points.

The separate control panel may be conveniently positioned to allow easy access for the operator. The 220 volt (single phase) electric/hydraulic power unit is housed inside the metal control panel box. The push button controls activate the raising and lowering of the lift. The sophisticated 10 position air actuated lock system is automatically engaged and disengaged as the lift is being raised or lowered.

Each hinge point has a zerk grease fitting to allow maximum lubrication to each joint. The UHMP wear blocks ensure years of smooth operation of the lifting surface.

The lift has a safety lowering limit switch. Once the lift platforms are lowered to within 10 1/2 inches of the ground, the lift automatically stops its descent. The Down button needs to be released and depressed again to allow the lift to go down completely.

The Atlas SLP 9K has locking approach ramps (attached to the lifting platforms) that can be locked into a horizontal position after the lift is locked at the desired working height.

Features and Specs

Features

  • 9,000 LB. Capacity
  • 78" (6' 6") maximum lifting height
  • Adjustable width
  • 10 air actuated locking positions
  • 220V single phase motor
  • Open middle for easy access
  • Locking approach ramps
  • Zerk grease fittings at each hinge point
  • Open middle for easy access
  • 1 Year Structural and Hydraulic Warranty
  • Separate Self-Contained Control Panel
  • CE Tested and Approved

Specifications

  • Lifting Capacity: 9,000 lbs.
  • Max Lifting Height: 78" (6' 6")
  • Overall Length: 82"
  • Max Overall Width: 82"
  • Lift Platform: 59 " x 24"
  • Lowered Height: 4 "
  • Width Between Platforms: Adjustable up to 31"
  • Approach Ramps: 11" x 24"
  • Power Unit: 2 HP 220V +/- 5% (209-231volts) 1 phase
  • Locking Positions: 10
  • Locks Actuated: Air
  • Lifting Cylinders: 4 (2 In Each Platform)
  • Oil Requirement: 3.5 Gallons AW32/AW46
  • Electrical Requirement: A 30 amp breaker is required
  • Shipping Dimensions: 54" x 48" x 85"
  • Shipping Weight: 2400 lbs
  • Warranty: 1 Year Structure, 1 Year Hydraulic, No Labor

Atlas 1-1 Warranty
1 Year Structural & 1 Year Hydraulic Warranty
This item is warranted for one (1) year on structural components and one (1) year on air or electric hydraulic power units, pneumatic power units, cylinders and major components from date of invoice. Wear items are covered by a 90 day warranty.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.

CE Tested and Approved CE Tested And Approved
The letters 'CE' appear on many products that are traded in the European Economic Area (EEA). There are 27 member states of the EU and European Free Trade Association. The CE marking attests the verification by a manufacturer that products meet EU safety requirements. It is the manufacturer’s responsibility to carry out the conformity assessment. Conformity assessment testing was performed by CCQS UK Ltd. www.ccqs.co.uk

This Atlas lift (structure and hydraulics) has been tested and has passed the CE conformity requirements. Atlas lifts sold in the USA and Canada use a different power unit than those required by CE. CE requires an electrical control box (with solenoids) that actuates the hydraulic power unit.

Electric power units supplied with above ground lifts in the USA and Canada do not require the electronic control box; therefore the power unit was not tested to CE approval requirements. If you have questions relating to the power unit supplied with your lift, please discuss these with your salesman.

If you are customer from the EU or other foreign county that requires CE approval, please contact our sales office to see how we can help.

Electrical Requirements
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz (+/- 5%, so 209-231 volts). We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit may or may not have a short pigtail (no plug) that can be wired to either an optional quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is required.
