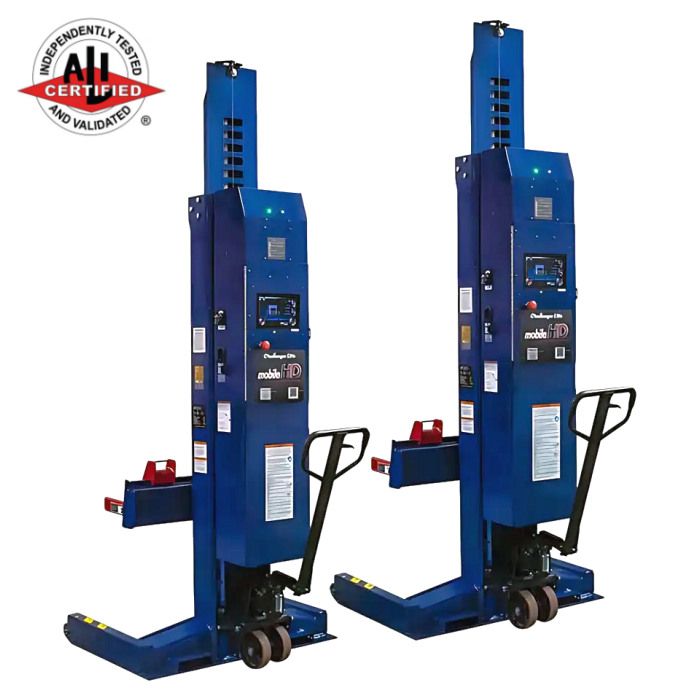

Challenger Lifts CLHM-190 Heavy-Duty Mobile Column Lifts Set of 2

Features

• Set of 2, Connect Up To 8 Columns
• 38,000 lbs. Lifting Capacity (19,000 lbs. per Column)
• 110-Volt Built-In Multi-Stage Charging System
• Wireless System For Clutter-Free Work Area Without Cables To Connect, Navigate, Roll-Over Or Replace
• Adjustable Wheel Carriage Adapts To Most Tire Sizes
• 12 Radio Frequencies With A Wide Channel Range Prevents Radio Noise From Interrupting Service
• Linear Position Transducers Maintain System Synchronization And Ensure Maximum Reliability
• Integrated Touch Screen Control Console At Each Column Allows Operation From Any Unit
• Precise Balanced Design, Heavy-Duty Tow Handle And Spring-Loaded Wheels For Easy Mobility
• Operates With 12-Volt Deep Cycle Batteries Eliminating The Need For Power Source Hookups And Providing 24-Volt Operation
• Integrated Weight Gauges Help Prevent Column Overloading And Verify Lock Engagement
• Wide Range Of Accessories Available To Further Customize Your Columns To Lift Specialty Heavy-Duty Trucks, Transit And Municipality Vehicles, Forklifts, Cab Removal Of Standard Pickup Trucks And More

Requirements

• 14' 8" Minimum Height
• 14' Recommended Width
• 28' Recommended Depth
• 110V Charging Battery Powered
• Concrete 4" Thick, Reinforced, Free From Cracks/Seams, 3500+ PSI & Cured For 28+ Days

Specifications

• System Lifting Capacity: 38,000 lbs. (Set of 2)
• Lifting Capacity Per Column: 19,000 lbs.
• Height of Lift Unit: 88.5"
• Height of Lift Unit at Full Rise: 157.125"
• Width of Lift Unit: 44.25"
• Length of Lift Unit: 53.625"
• Maximum Lift Height (4 or more units): 69"
• Maximum Lift Height (2 units - Normal Mode): 32"
• Min-Max Wheel Diameter: 5" - 24.5"
• Max. Hydraulic System Operating Pressure: 2,600 psi
• Lift Speed (Max Load): 60" per min.
• Footprint of Lift Unit: 560 sq. in.
• Ground Pressure for each Lift (Max. Load): 36.6 psi
• Turning Radius of Lift Unit: 47"
• Operating Peak Power: 4HP
• Operating Voltage: 25 VDC nominal
• Charger Voltage Required: 120 VAC @ 60 Hz
• Charger Amps Required: 1.3 Amps
• ALI/ETL Certified: Yes
• Colors Available: Blue
• Weight of Lift Unit: 1,510 lbs.
• Warranty: (5) Years on Structure, (2) Years on Functional Parts, (1) Year Labor

Challenger Lifts Warranty Statement
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for all reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI's specifications set forth in CLI's installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and in not transferable. This warranty is valid only if the product has been registered with Challenger lifts.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latched, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters., sync rails, and plungers.

Note: Warranty registration must be completed online at challengerlifts.com/register-your-lift or warranty period will begin from invoice date of lift purchase.
