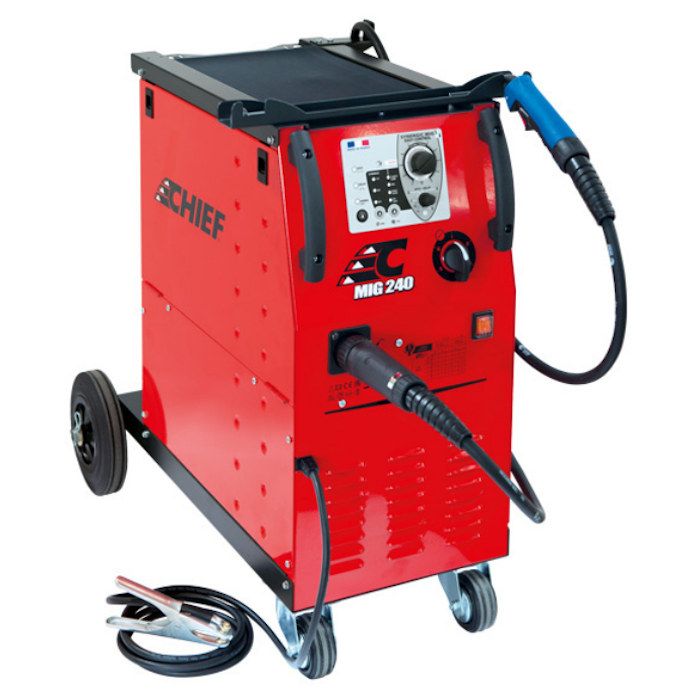

Chief MIG240 Steel Welder with Synergic Mode

Out of stock
SKU
MIG240
Our Price $1,680.00 Regular Price $1,769.00

Chief MIG240 Steel Welder with Synergic Mode
High Performance Steel Welder with 3 Welding Modes

The MIG240 with Synergic Mode is a single-phase MIG welder designed for welding steel. The machine determines the optimum wire speed by selecting the type of wire, wire diameter, and welding current. Memory save feature for each torch and activation of the 'last used' welding parameters (wire diameter, wire type, and mode) are automatically saved.

Model Selection:
CEL014534 MIG240 Welder
CELK900010 MIG240 Welder Starter Kit

MIG240 Welder Starter Kit includes Flow Meter Gauge, Weld Wire .030 (Steel), 11# Spool, 0.6 & 0.8 Roller, 0.8 & 1.0 Roller, Liner, Accessory Box, 0.6mm Tip, and 0.8mm Tip.

Description

Chief Collision Technology

Chief MIG240 Steel Welder with Synergic Mode
High Performance Steel Welder with 3 Welding Modes

The MIG240 with Synergic Mode is a single-phase MIG welder designed for welding steel. The machine determines the optimum wire speed by selecting the type of wire, wire diameter, and welding current. Memory save feature for each torch and activation of the 'last used' welding parameters (wire diameter, wire type, and mode) are automatically saved.

MIG240 Welder Starter Kit includes Flow Meter Gauge, Weld Wire .030 (Steel), 11# Spool, 0.6 & 0.8 Roller, 0.8 & 1.0 Roller, Liner, Accessory Box, 0.6mm Tip, and 0.8mm Tip.

Synergic Technology
Loaded with synergic technology, the MIG240 can determine the optimum wire speed by selecting the type of wire being used, the wire's diameter, and the welding current.

Autosave Welding Parameters
Our autosave feature remembers the last-used welding parameters used for each torch (wire diameter, wire type, and mode).

Reel Motor With Four Drive Rolls
The M240's wire reel motor is equipped with four drive rolls, which are suitable for 200mm-300mm wire reels (15kg max).

Three Welding Modes
This unit features three welding modes: Standard (2T), Spot, and Delay.

Standard 15Ak Torch
This product comes standard with a 15Ak Torch.

Features and Specs

Features

  • High Performance Steel MIG Welder
  • Easy To Use Synergic Technology
  • Autosave Welding Parameters
  • Reel Motor With Four Drive Rolls
  • Three Welding Modes Standard (2T), Spot And Delay
  • Includes Standard 15Ak Torch

Specifications

  • Weldable Wires: 0.6 - 0.8mm
  • Welding Current Range: 15 - 160 A
  • Welding Current, 60%: 90A (40°C)
  • Duty Cycle I Max: 140A 15% (40°C)
  • Mains Voltage: 208 / 240 V / 1Ph
  • Mains Fuse: 16 A (CEE 16)
  • Dimensions D/W/H: 470 x 770 x 790mm
  • Weight: 110 lbs. (50kg)

More Information

More Information
more

Chief MIG240 Welder Brochure (.pdf)
