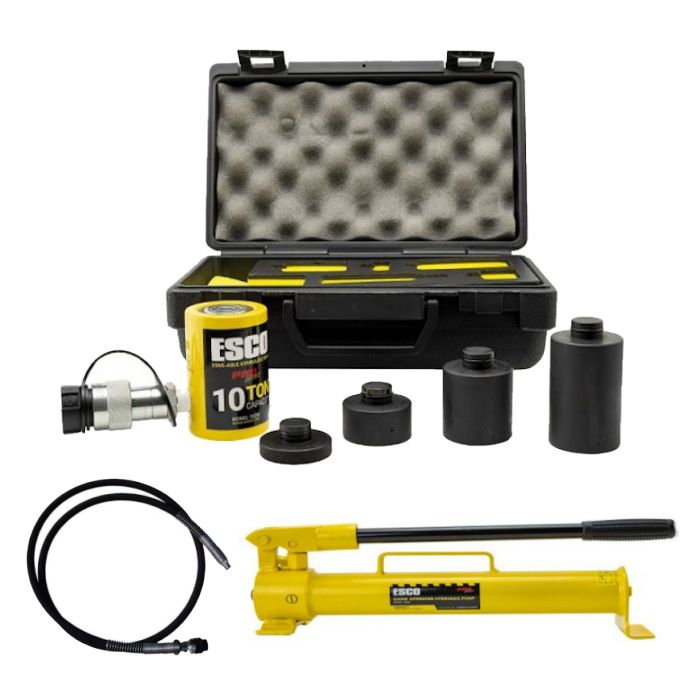

ESCO 10239 10-Ton Hydraulic Stak-Able Ram Kit with 1 Quart Pump

Kit Includes

• #10316 - 10-Ton Hydraulic STAK-ABLE Ram Kit
• #10508 - 1 Quart Manual Hydraulic Pump
• #10604 - 8' Hose Assembly with Hose Coupler

#10316 10-Ton Hydraulic STAK-ABLE Ram Kit Features

• Great For Use In Multiple Applications In The Tire/Wheel Service Market And Many More
• Ideal For Low Clearance Applications
• Used To Break The Back Bead By Pushing Off The Chassis On Heavy Duty Equipment
• Great For Loosening Seized Wheels From Back-End Of Vehicle On Heavy Duty Equipment
• Easy Snap-In Extensions
• Made Of High-Quality Steel
• Most Versatile 10 Ton Ram On The Market
• Easy To Switch Out Extensions For Optimal Extension Length
• Includes Carrying Case
• 3-Year Extended Warranty

#10316 10-Ton Hydraulic STAK-ABLE Ram Kit Specifications

• Capacity: 10 Tons (20,000 lbs.)
• Maximum Pressure: 10,000 psi
• Retracted Height: 3.5"
• Extended Height: 5"
• Maximum Height: 11.25"
• Stroke: 1.3125"
• Saddle: 0.375"
• Extension 1: 1"
• Extension 2: 2"
• Extension 3: 3"
• Weight: 10 lbs.
• Dimensions (Product Case): 12" W x 5" L x 5" H
• Dimensions (Packaging): 12" W x 10" L x 5" H
• Warranty: (3) Years Limited*

#10508 1 Quart Manual Hydraulic Pump Features

• Hand Operated Hydraulic Pump
• 1-Quart Oil Capacity
• 10,000 PSI Hydraulic Pressure
• Shipped With Premium Hydraulic Oil
• 3-Year Extended Warranty

#10508 1 Quart Manual Hydraulic Pump Specifications

• Oil Capacity: 1 Quart
• Material: Metal
• Max. Pressure: 10,000 PSI
• Weight: 14 lbs. (7 kg)
• Warranty: (3) Years Limited*

#10604 8' Hose Assembly with Hose Coupler Features

• Hydraulic Hose With Swivel Fitting - Hose Won't Kink
• Reinforced With Two Layers Of Braided Steel
• Withstands Extreme Temperatures of -40°F
• Use With Any 10,000 PSI Pump, Ram Or Bead Breaker
• Includes Half Coupler

#10604 8' Hose Assembly with Hose Coupler Specifications

• Hose Length: 8' (96")
• Max. Air Pressure: 10,000 PSI
• Type: 3/8" 18 Male
• Attachments Included: Model #10605 Half Coupler
• Weight: 5 lbs. (2.2 kg)

*Must Register Product to Qualify for 3-Year Warranty Extension.

ESCO Limited Warranty Statement
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.

This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.
