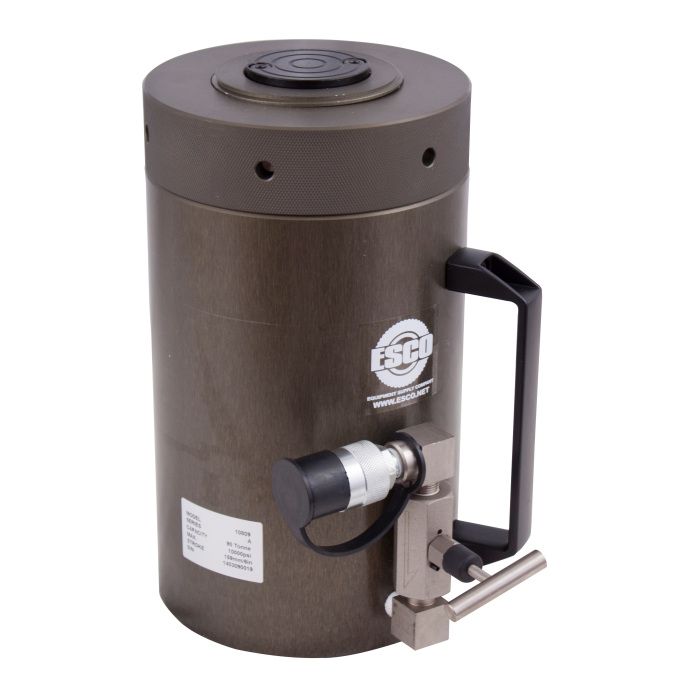

ESCO 10809 100-Ton Safety Locking Collar Jack
The ESCO Professional Aluminum Locking Collar Jacks (Cylinders) are known for their quality and lightweight durable design. The most important part of lifting a heavy load is the ability to sustain the load. While most instances support jack stands are used; the Locking Collar Jack (Cylinder) acts as its own self-contained support stand. This aids in complying with OSHA regulation 29CFR1926.305.
The ESCO 10809 100-Ton Safety Locking Collar Jack is designed for use in multiple heavy lifting applications including OTR/mining vehicle lifting.
Description
ESCO 10809 100-Ton Safety Locking Collar Jack
The ESCO Professional Aluminum Locking Collar Jacks (Cylinders) are known for their quality and lightweight durable design. The most important part of lifting a heavy load is the ability to sustain the load. While most instances support jack stands are used; the Locking Collar Jack (Cylinder) acts as its own self-contained support stand. This aids in complying with OSHA regulation 29CFR1926.305.The ESCO 10809 100-Ton Safety Locking Collar Jack is designed for use in multiple heavy lifting applications including OTR/mining vehicle lifting.
Features and Specs
Features
- Designed For Use In Multiple Heavy Lifting Applications Including OTR/Mining Vehicle Lifting
- High Tonnage: 100-Ton Lifting Capacity
- Heavy Duty Aluminum Design At A Fraction Of The Weight
- Lightweight And Compact Design Makes Unit Highly Portable
- Safety Lock Nut For Mechanical Load Holding
- 6" (152mm) Stroke
- 3-Year Extended Warranty
Specifications
- Lifting Capacity: 100-Tons
- Stroke: 6" (152mm)
- Max Pressure: 10,000 PSI
- Min. Height: 13.37" (339mm)
- Max. Height: 19.60" (497mm)
- Cylinder Effective Area: 20.58" (in²)
- Oil Capacity: 128.39" (in³)
- Cylinder Width: 7.44" (188mm)
- Piston Rod Diameter: Tr110 x 6mm
- Nut Thickness: 1.97" (50mm)
- Weight: 66 lbs. (30 kg)
- Warranty: (3) Years Limited*
*Must Register Product to Qualify for 3-Year Warranty Extension.
ESCO Limited Warranty Statement
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.
This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.
More Information
| more | ESCO 10809 100-Ton Safety Locking Jack Brochure (.pdf) ESCO 10809 100-Ton Safety Locking Jack Manual (.pdf)
ESCO is the world leader in manufacturing and supplying quality tire service equipment for the automotive, agricultural, commercial truck, off-the-road (OTR), and mining markets. ESCO produces a wide range of tire service/handling products ranging from: heavy duty bead breakers, hydraulic rams, air hydraulic pumps, heavy duty jacks and stands, tire demounting and mounting tools, tire wheel dollies, torque wrenches, and many other quality tire service equipment to better aid in safely and efficiently servicing tire/wheels.
