Forward Lift CR30-3 Four Post Extra Long HD Lift

Out of stock
SKU
CR30110200
Our Price $35,516.00 Regular Price $40,092.00
ALI Certified Automotive Lift

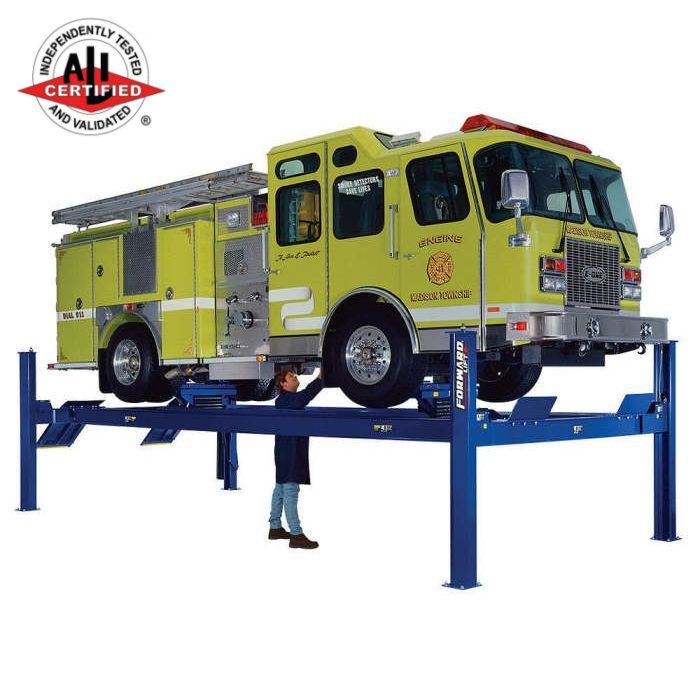

Forward Lift CR30-3 Four Post Heavy Duty Lift 30,000 lbs. Capacity
General service 4-post lift, 308" wheel base max., with 24" wide fixed runways, jack in-rail kit and anit-sway kit "built in" system w/standard drive on ramps. ETL approved.

CURRENT LEAD TIME 4-6 WEEKS

Description

Forward Lift

Forward Lift CR30-3 Four Post Heavy Duty Lift 30,000 lbs. Capacity

30,000 lbs. capacity 4 post lift, think big then lift big Forward thinkers say!

Engineering Excellence. Forward’s U.S. engineers have over 29 years of combined experience designing automotive lifts for service and repair shops. Forward’s philosophy is to own our designs rather than use someone else’s off the shelf product.

Product Integrity. 21st century design tools allow us to create, control and validate our designs to ensure maximum performance. Forward lifts are thoroughly tested to meet quality and durability standards. All product families are proof load tested to 1-1/2 times rated capacity and rigorously cycle tested.

Features and Specs

Features

  • Self chocking approach ramps engage in the rear when the lift is raised
  • Single point latch release system releases all four column locks at the same time
  • Multi-position lock components allow lift to be level at any lock position
  • Textured surface on runways and ramps
  • All hydraulics and mechanical lifting components concealed under the runway
  • Internal airline standard connections allow two rolling jacks (optional) to operate at the same time

Specifications

  • Capacity: 30,000 (12701 kg)
  • Maximum Wheelbase: 307"
  • Lifting Height: 68" (1727mm)
  • Overall Length: 31'-8-1/8"
  • Overall Width: 12'-4-13/16"
  • Width Inside Columns: 132" (3353mm)
  • Length Between Columns: 321"
  • Overall Height: 7'-3/4"
  • Runway Width: 24" (610mm)
  • Runway Height: 8-3/8" (213mm)
  • Width Between Runways: 41" - 48" (1041mm - 1219mm)
  • Rise Time*: 105 seconds
  • Voltage*: 208/230v
  • Amps: 20
  • Motor: 4HP
  • Minimum Bay Size: 16' X 33'
  • Warranty: (5) Years on Structure, (1) Year on Parts, (1) Year Labor

* Single Phase Standard; 3-Phase Available At Additional Cost

Forward Lift Warranty Statement
All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.

All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:

  • Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
  • Normal maintenance and adjustments as required by the owner's manual.
  • Failure to follow installation and operation instructions or user neglect or abuse.
  • Damage to components incurred during transportation or unloading.
  • Any lift that has been altered from the original design or improperly repaired.
  • Cosmetic defects or blemishes that do not interfere with functionality of the lift.
  • Damage caused by improper lifting or overloading.
  • Damage caused by corrosion of any kind.

*Specifications subject to change without notice or liability.

Accessories/Options

More Information

More Information
more

Warranty

  • Warranty (Accessories) 1 Year Parts Only
  • Warranty (Lifts) 5 years on structure, 18 months on parts, and 6 months labor
  • Extended Warranty Available - Additional $90.00 for 18 month extended parts warranty
  • Standard lift colors include blue and red

Optional Accessories

  • Rolling bridge jacks (RJ151BK, 15,000 lbs. capacity each)
  • Drive Through ramps optional
  • 30 gallon oil drain pan

Forward Lift CR30 CR30-3 Four Post Lift Brochure (.pdf)

Forward Lift CR30-CR30-3 Four Post Lift Manual (.pdf)
