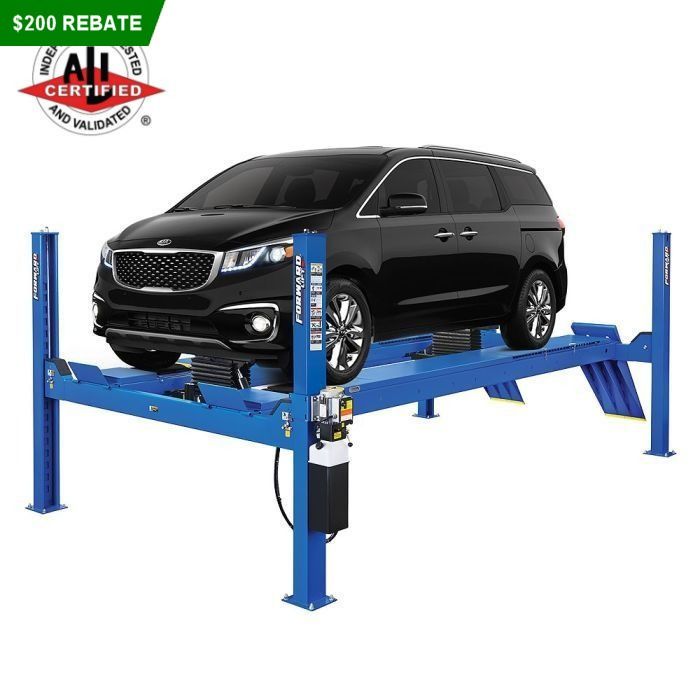

Forward Lift CRA14 EL Four Post Alignment Lift
Forward Lift CRA14-EL Four Post Alignment Lift
14,000 lbs. Capacity Model CRA14N202Y
Alignment Rack, 4-Post, 215" Wheel Base Max., with 20" wide Runways, w/standard Drive-On Ramps.
Includes (2) RRJ70G jacks, bolt on alignment kit w/radius gauges and internal airline kit. ETL APPROVED
The foundation of a Forward four post lift is the cable and pulley system under the runways. All hydraulics and mechanical lifting components are concealed in this area; tucked out of the way for a clean finish however easily accessible for inspection when needed. Forward Lift offers a durable powder coated hammer tone paint finish on its lifts. Our four post lifts have a multi-position lock component which allows any 4 post lift to be level at any lock position. Self chocking approach ramps and wheel chocks come standard with the CRA14.
Description
Forward Lift CRA14-EL Four Post Alignment Lift
14,000 lbs. Capacity Model CRA14N202Y
CRA14 Alignment Lifts Feature an improved, advanced hydraulic and mechanical lifting system which is concealed and protected under the runway. This high performance design generates greater durability and a more efficient and dependable lift operation. The CRA14 runway lift features an industry-best rise height of 80-3/4” allowing better technician access for under vehicle service.
High Performance Forward Lifts are rigorously cycle tested at rated load giving you a proven, quality tested lift you can depend on for years of quality service. Forward engineers’ gold certified designs meet the highest industry standards for safety and performance. Secure your investment and your bottom line with these versatile and reliable vehicle service lifts.
Forward lifts are rigorously cycle tested to exceed durability standards. All Forward products are proof load tested to 1-1/2 times rated capacity! The combination of high quality products and service provides you with the very best value - while not compromising safety, functionality or durability.
Features and Specs
Features
- 14,000 lbs. capacity
- Heavy duty hydraulic cylinder
- Single Point latch release system
- One piece formed runway design incorporates rolling jack channels
- Multiple position latch points in each structural leg
Specifications
- Capacity: 14,000 lbs. (6350kg)
- Max. Wheelbase: 215' (5460mm)
- Max. Two Wheel Alignment: 199 1/4" (5060mm)
- Max. Four Wheel Alignment: 172 1/4" (4375 mm)
- Min. Four Wheel Alignment: 88" (2235mm)
- Rise: 80-3/4"(2000mm)
- Length Overall: 23' 7" (7188mm)
- Width Overall: 10' 11-3/4" (3346mm)
- Inside Columns: 116 1/4" (2953mm)
- Between Front and Rear Columns: 228-1/4" (5798mm)
- Height of Columns: 7' 6-1/2" (2281mm)
- Width of Runways: 20" (508mm)
- Height of Runways: 9" (228mm)
- Width Between Runways: 43" (1092mm) or 46" (1168mm)
- Time of Full Rise: 72 seconds
- Voltage Single Phase*: 208v-230v
- Motor: 2HP
- Minimum Bay Size: 15' x 28' (4572 x 8534mm)
- Warranty: (5) Years on Structure, (1) Year on Parts, (1) Year Labor
* Single Phase Standard; 3-Phase Available At Additional Cost
Forward Lift Warranty Statement
All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.
All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:
- Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
- Normal maintenance and adjustments as required by the owner's manual.
- Failure to follow installation and operation instructions or user neglect or abuse.
- Damage to components incurred during transportation or unloading.
- Any lift that has been altered from the original design or improperly repaired.
- Cosmetic defects or blemishes that do not interfere with functionality of the lift.
- Damage caused by improper lifting or overloading.
- Damage caused by corrosion of any kind.
*Specifications subject to change without notice or liability.
More Information
| more |
Forward Lift CRA14 OR14 Four Post Lift Brochure (.pdf) Forward Lift CRA14 CRA14-X Four Post Lift Manual (.pdf) Forward Lift CRA14 CRA14-X Four Post Lift Installation (.pdf) |
|---|
