Forward Lift DP18N002 Heavy-Duty Two Post Lift

In stock
SKU
DP18N002
Our Price $18,705.15 Regular Price $18,990.00
ALI Certified Automotive Lift

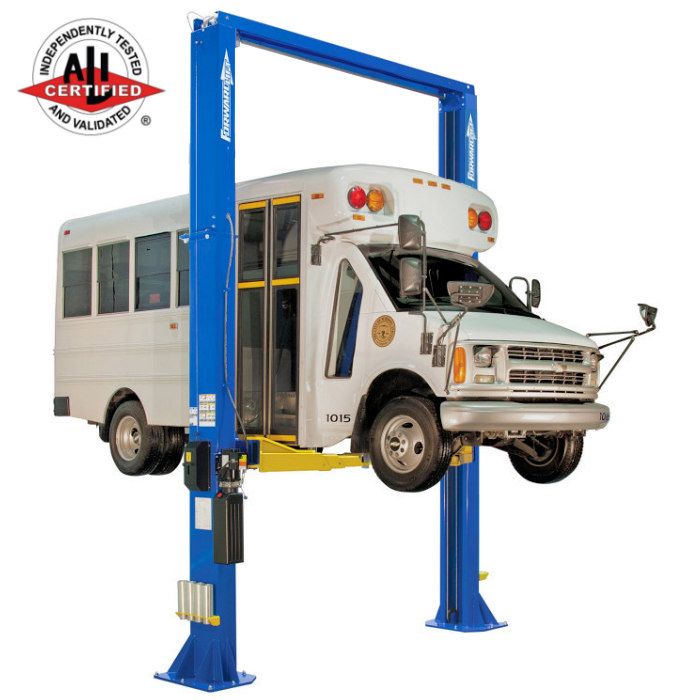

Forward Lift DP18 Heavy-Duty Two Post Lift 18,000 lbs. Capacity
199" Tall, Symmetric Arms and Columns, Direct Pull, Clear Floor

The DP18 is constructed of high strength heavy gauge steel columns. Large gusseting on substantial base plate foundations provide the stability and support you want for a heavy truck lift. With a capacity of 18,000 pounds your shop can start working on work trucks, vans or small buses along with everything else that rolls through the door. Symmetric arms and columns, direct pull, clear floor two post vehicle lift. Includes screw pad adapters and a variety of quick change height adapters. Forward Lift's DP18N002 is same as DP18 except with an additional 2' height. The DP18 vehicle lift is ALI and ETL Certified.

Sale! - 15% OFF! While Supplies Last!

Description

Forward Lift

Forward Lift DP18 Heavy-Duty Two Post Lift 18,000 lbs. Capacity
199" Tall, Symmetric Arms and Columns, Direct Pull, Clear Floor

The DP18 is constructed of high strength heavy gauge steel columns. Large gusseting on substantial base plate foundations provide the stability and support you want for a heavy truck lift. With a capacity of 18,000 pounds your shop can start working on work trucks, vans or small buses along with everything else that rolls through the door. Symmetric arms and columns, direct pull, clear floor two post vehicle lift. Includes screw pad adapters and a variety of quick change height adapters. Forward Lift's DP18N002 is same as DP18 except with an additional 2' height. The DP18 vehicle lift is ALI and ETL Certified.

Truck Adapter Extensions: The DP18 comes with eight aircraft grade aluminum truck adapter extensions. Four 5" and four 10" adapters allow you to lift a wide range of vehicles. These are heavy duty adapters without the "heavy". Because they’re made of aluminum you’ll be able to place and maneuver them without strain. They have a convenient column bracket for storage.

Extended Height Model Options: The DP18 offers two different height options, for the lower ceiling option DP18N000 the overhead cross member mounts directly to the column without a column extension to fit a 155-3/4" (12'-11-3/4") ceiling height. The extended height DP18N002 fits a 200" (16'-8") ceiling height. With these options it’s easy to choose the best package to fit into your existing shop.

Low Profile Arms: Forward’s new HD two post arms feature a low profile adapter engagement area. This allows for greater flexibility of this lift. You’ll be able to encompass more service built around a lift that can handle most trucks and vans. The arms have heavy duty gusseting, are two stage that can easily be extended (61" Length) and retracted (38" Length) while lying on the floor to spot. Couple that with the light adapter extensions and you win the spotting large vehicle battle!

The DP18 is a commercial grade heavy grade truck lift and should not be confused with any other cheap two post vehicle lifts. This is a Forward lift so it has been engineered to preform and built to last!

The DP18 lift is certified by ALI (Automotive Lift Institute) to meet American National Standard.

Engineering Excellence. Forward’s U.S. engineers have over 29 years of combined experience designing automotive lifts for service and repair shops. Forward’s philosophy is to own our designs rather than use someone else’s off the shelf product.

Product Integrity. 21st century design tools allow us to create, control and validate our designs to ensure maximum performance. Forward lifts are thoroughly tested to meet quality and durability standards. All product families are proof load tested to 1-1/2 times rated capacity and rigorously cycle tested.

Features and Specs

Features

  • 18,000 lbs. capacity for raising most trucks and vans
  • Features symmetrical column design
  • 2-stage front and rear arms extend from 38" to 61" reach
  • Single point lock release at operations center
  • Closed loop hydraulic system protects against hydraulic contamination
  • Spring operated arm restraints, disengage at floor level
  • Padded shut-off bar
  • Low profile arms and adjustable truck adapters
  • Hydraulic cylinders in each column:
  • Top mounted | Cylinder rod concealed inside carriage
  • Direct-Pull Lifting - high efficiency, low maintenance technology
  • Third party tested by ETL and certified by ALI
  • Powder coat, oven baked finish

Specifications

  • Total Capacity: 18,000 lbs. (6803kg)
  • Rise*: 83" (2120mm)
  • Overall Height: 199" (5054mm)
  • Height to Shut-Off: 191-1/4" (4860mm)
  • Minimum Ceiling Height: 200" (5080mm)
  • Overall Floor Width: 154-3/8" (3921mm)
  • Inside Column Width: 119-5/8" (3038mm)
  • Drive Through Clearance: 108-3/4" (2762mm)
  • Arm Reach (Min./Max.): 38" (965mm) min / 61" max (1549mm)
  • Minimum Adapter Height: 5-1/2" (139mm)
  • Stackable Adapter Height (Low Extension): 10-1/2" (266mm)
  • Stackable Adapter Height (High Extension): 15-1/2" (393mm)
  • Motor/Phase: 1ph / 2HP
  • Voltage/Amps*: 208/230v, 20 amps
  • Warranty: (5) Years on Structure, (1) Year on Parts, (1) Year Labor

* Maximum lifting height with 10" adapters

Forward Lift Warranty Statement
All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.

All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:

  • Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
  • Normal maintenance and adjustments as required by the owner's manual.
  • Failure to follow installation and operation instructions or user neglect or abuse.
  • Damage to components incurred during transportation or unloading.
  • Any lift that has been altered from the original design or improperly repaired.
  • Cosmetic defects or blemishes that do not interfere with functionality of the lift.
  • Damage caused by improper lifting or overloading.
  • Damage caused by corrosion of any kind.

*Specifications subject to change without notice or liability.

Accessories/Options

More Information

More Information
more
  • Warranty (Accessories) 1 Year Parts Only
  • Warranty (Lifts) 5 years on structure, 18 months on parts, and 6 months labor
  • Extended Warranty Available - Additional $90.00 for 18 month extended parts warranty
  • Blue Standard / Red Available

Forward Lift DP18 Two Post Lift Brochure (.pdf)

Forward Lift DP15 DP18 Two Post Lift Manual (.pdf)

Forward Lift DP15 DP18 Two Post Lift Installation (.pdf)

Forward Lift DP15 DP18 Two Post Lift Parts (.pdf)
