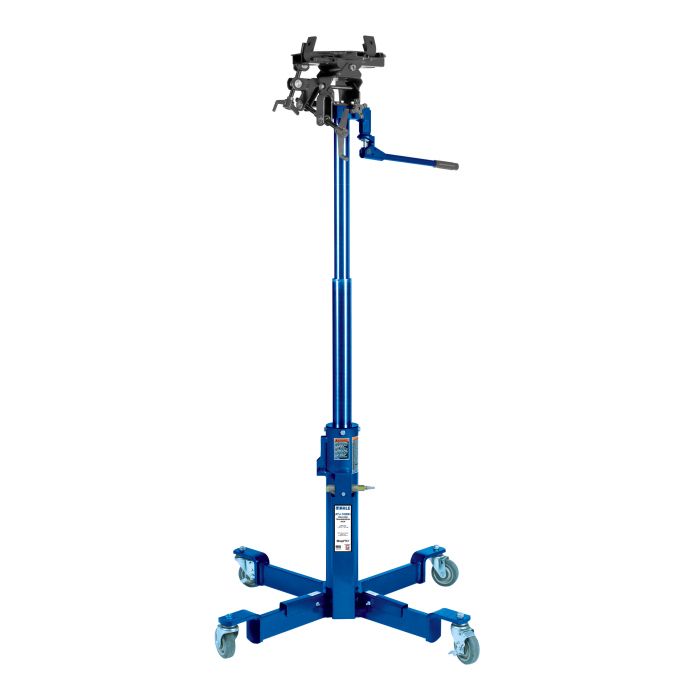

MAHLE ShopPRO ATJ-1000H High-Rise Transmission Jack

Features

• 1,000 lbs. Capacity
• Two-Stage Design: 1st stage 100% air operated for speed; 2nd stage hydraulic for precise control
• Swivel casters make for easy maneuverability
• Nylon Speed-Strap quickly and conveniently secures the load
• Heavy-Duty acme threaded screws provide greater bearing surface for easier tilt adjustments
• Additional adapters available

Optional Accessories

• 485 80026 00 #90 Adapter
• 485 80027 00 #45 Adapter
• 485 80028 00 2" Height Adapter
• 485 80029 00 4T80E Adapter
• 485 80030 00 Adapter Kit

Specifications

• Capacity: 1,000 lbs. (454 kg)
• Minimum Start Height: 34.5 in (88 cm)
• Maximum Lift Height: 72 in (183 cm)
• Power: 1st Stage Air / 2nd Stage Hydraulic
• Head Plate Dimensions: 11.5 in x 11.5 in (29 cm x 29 cm)
• Overall Dimensions: 41" W x 41" L (104 x 104 cm)
• Swivel Caster Diameter: 4 in (10 cm)
• Required Air Pressure: 90 to 160 psi (6.2 to 11.0 bar)
• Tilt Forward: 40°
• Tilt Rear: 20°
• Tilt Side to Side: 10°
• Shipping Weight: 125 lbs. (57 kg)
