MAHLE ShopPRO CAL-4 Vehicle Air Lift 4 Ton
In stock
SKU
485 80166 00
Our Price
$7,842.00
Regular Price
$8,239.00

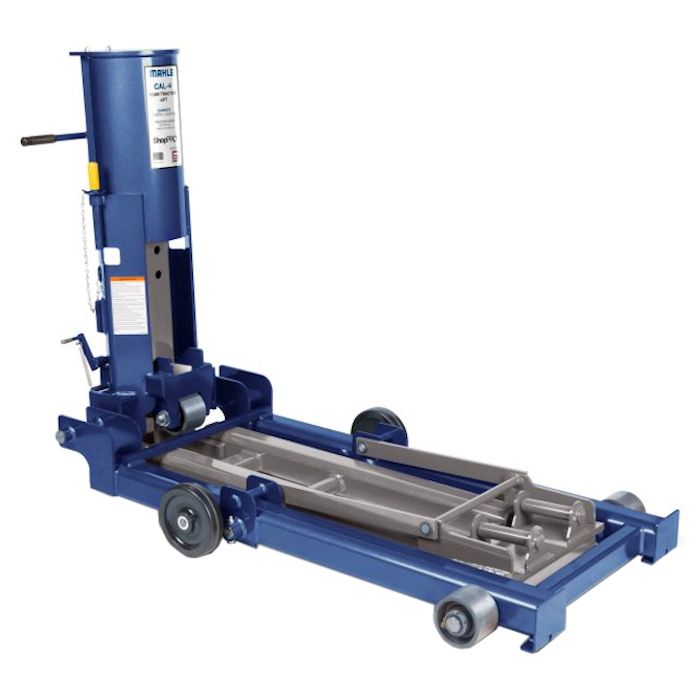

MAHLE ShopPRO CAL-4 Vehicle Air Lift 4 Ton 8,000 lbs. Capacity
The MAHLE ShopPRO CAL-4 Vehicle Air Lift is 100% air operated and provides the user with 8,000 lbs. of vehicle lifting capacity. The CAL-4 is highly maneuverable and easy to set up. A two-stage air valve provides controlled lifting and lowering speed.
The MAHLE ShopPRO CAL-4 Vehicle Air Lift is 100% air operated and provides the user with 8,000 lbs. of vehicle lifting capacity. The CAL-4 is highly maneuverable and easy to set up. A two-stage air valve provides controlled lifting and lowering speed.
Description
MAHLE ShopPRO CAL-4 Vehicle Air Lift 4 Ton 8,000 lbs. Capacity
The MAHLE ShopPRO CAL-4 Vehicle Air Lift is 100% air operated and provides the user with 8,000 lbs. of vehicle lifting capacity. The CAL-4 is highly maneuverable and easy to set up. A two-stage air valve provides controlled lifting and lowering speed.Features and Specs
Features
- 8,000 lbs. Capacity
- Allows for safe lifting and support of drive axles
- Change all tires with a single jack movement
- Eliminates the need to go under the vehicle to place jacks or support stands
- Downstops and pin increments every 3"
- Low starting height to clear low hanging suspension
- 100% air operation
Optional Accessories
- 485 80126 00 CAR-20 2,000 lbs. Rear Axle Support/Restraint
Specifications
- Capacity: 8,000 lbs. (3628 kg)
- Stroke: 17 in (43.2 cm)
- Minimum Start Height: 7.9 in (20.1 cm)
- Maximum Lift Height: 23.5 in (59.7 cm)
- Power: Air
- Required Air Pressure: 125 psi (862 bar)
- Forward Reach (CL to CL): 44 in (112 cm)
- Overall Length: 70.25 in (178.4 cm)
- Overall Width: 39.5 in (100.3 cm)
- Overall Height: 50.75 in (129.5 cm)
- Shipping Weight: 700 lbs. (317.5 kg)
