ASEplatinum PL6K Low-Rise Pit Lift

Name: ASEplatinum PL6K Low-Rise Pit Lift
Brand: ASEplatinum
SKU: PL6K
Price: 4145.0 USD
Availability: InStock

In stock

SKU

PL6K

Our Price $3,499.00 Regular Price $4,145.00

INCLUDES FREE SHIPPING*

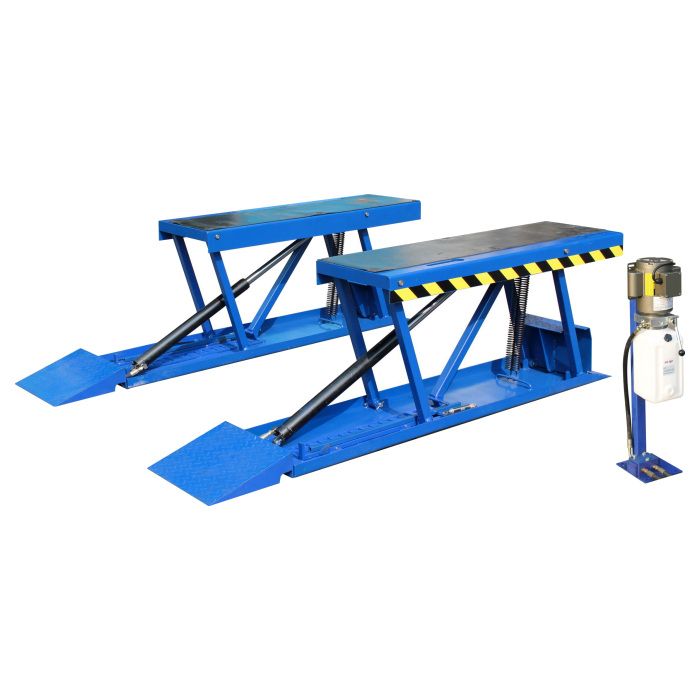

ASEplatinum PL6K Low-Rise Pit Lift 6,600 lb. Capacity
ASEplatinum PL-6K 6,600 lbs. Low-Rise Pit Lift is surface mounted, with an center front design. Features heavy duty locking system with 15 positions, with pneumatic lock release. Gear driven valve for smoother lifting. The low rise lift comes standard with high density rubber lifting blocks. Ideal for lube shops with pits for technicians, but also popular for mechanics who just want a low rise pad lift with an open center for full under - car access. Perfect for oil change and lube shops. Also great for automotive brake and wheel work.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description Features and Specs More Information Reviews

Description

ASEplatinum PL6K Low-Rise Pit Lift 6,600 lb. Capacity

ASEplatinum PL-6K 6,600 lbs. Low-Rise Pit Lift is surface mounted, with an center front design. Features heavy duty locking system with 15 positions, with pneumatic lock release. Gear driven valve for smoother lifting. The low rise lift comes standard with high density rubber lifting blocks. Ideal for lube shops with pits for technicians, but also popular for mechanics who just want a low rise pad lift with an open center for full under - car access.

ASEplatinum lifts are an affordable alternative to the high priced manufacturers out there, yet are surprisingly high quality. They basically took all the best features that customers want, and combined them with attention to detail along with rock-bottom prices to win your business. You don't have to sacrifice quality for an affordable car lift.

Features and Specs

Features

6,600 lb. Lifting Capacity
Surface mounting
Open center design
Pneumatic lock release
Low-profile
Dual approach design
Electric / hydraulic power system
Heavy duty locking system with 15 positions
High density rubber lifting blocks included
No crossmember
Gear driven valve for smoother lifting

Specifications

Lifting Capacity: 6,600 lbs.
Lifting Height (Less Lifting Blocks): 26-1/8"
Lifting Height (With Lifting Blocks): 27-5/8"
Pad Length Overall: 53"
Overall Width: 18"
Overall Length: 83-1/4"
Lowered Height: 4-1/4"
Motor: 110-220V AC/60Hz
Shipping Weight: 700 lbs.
Warranty: 5 Years Structure, 1 Year Parts, No Labor

Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.

Limited (1) Year Warranty
Tuxedo Distributors, LLC (ASEplatinum) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.

Other Limitations
This warranty does not cover:

Parts needed for normal maintenance
Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
On-site labor
