Challenger Lifts CL16-2-3S Heavy-Duty Two Post Lift Extended Height

In stock
SKU
CL16-2-3S
Our Price $23,047.00 Regular Price $23,978.00
ALI Certified Automotive Lift

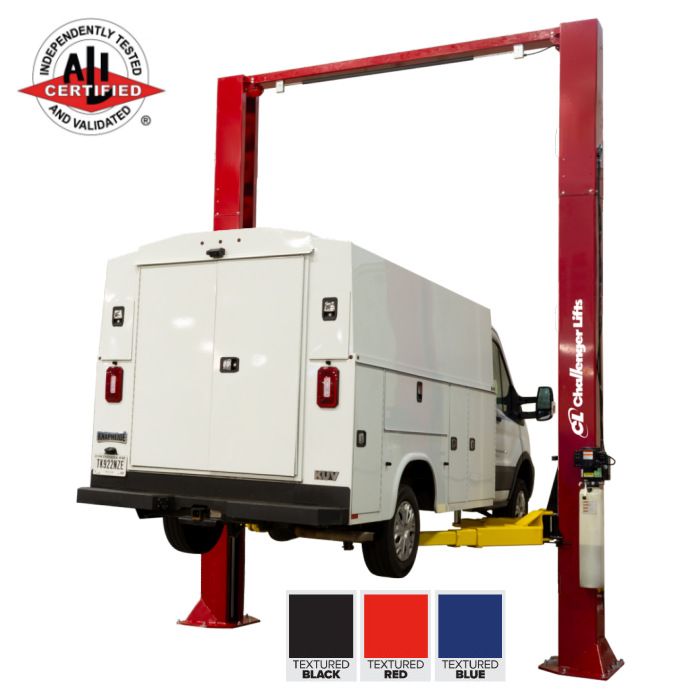

Challenger Lifts CL16-2-3S Heavy-Duty Two Post Lift
16,000 lbs. Capacity Three Adjustable Heights and Widths
with 3-Stage Front and Rear Arms and 2' Height Extension

Challenger Lift's CL16-2-3S Heavy-Duty Two Post Lift boasts optimum flexibility with a lift designed from the anchors to meet ALI/ANSI safety standards. These lifts have a capacity of 16,000 lbs. and can lift everything from compact cars to tall, heavy trucks. Altogether, this lift will withstand the toughest of fleet maintenance needs. The CL16-2-3S has the capacity and height to symmetrically lift service trucks and 3-stage front and rear arms to lift smaller vehicles asymmetrically. Additionally, featuring low-profile pickup pads and an adjustable width and height. Challenger Lifts CL16-2-3S is ALI and ETL Certified.

Color Selection:
Textured Red, Textured Blue, and Textured Black

CURRENT LEAD TIME 4-6 WEEKS

Made In USA

Description

Challenger Lifts

Challenger Lifts CL16-2-3S Heavy-Duty Two Post Lift
16,000 lbs. Capacity Three Adjustable Heights and Widths
with 3-Stage Front and Rear Arms and 2' Height Extension

Challenger Lift's CL16-2-3S Heavy-Duty Two Post Lift boasts optimum flexibility with a lift designed from the anchors to meet ALI/ANSI safety standards. These lifts have a capacity of 16,000 lbs. and can lift everything from compact cars to tall, heavy trucks. Altogether, this lift will withstand the toughest of fleet maintenance needs. The CL16-2-3S has the capacity and height to symmetrically lift service trucks and 3-stage front and rear arms to lift smaller vehicles asymmetrically. Additionally, featuring low-profile pickup pads and an adjustable width and height. Challenger Lifts CL16-2-3S is ALI and ETL Certified.

The CL16-3S has the capacity and height required to symmetrically lift service trucks and 3-stage front and rear arms to lift smaller vehicles asymmetrically. Additionally featuring low profile pickup pads and an adjustable width and height. 2ft height extensions are available for additional clearance.

Installation is available in 1 of 3 height and width variations, making this one our most versatile lifts.

Innovative synchronizer cable system, easily adjusts to any of the three lift height options without extra parts or making the cable connection inaccessible.

The CL16-2-3S has the capacity and height required to symmetrically lift service trucks and 3-stage front and rear arms to lift smaller vehicles asymmetrically.

Additionally featuring low profile pickup pads and an adjustable width and height. 2' height extensions are available for additional clearance.

Enhanced Screw Pads

Enhanced Screw Pad
The enhanced screw pad comes standard with CL16/CL20 and has durable contact pad with built-in raised edge on two sides to accommodate locating of framed vehicles.




Stack Adapter Extension Kit Stack Adapter Extension Kit
Stack Adapter Kit for 16,000 two post and inground car and truck lifts. Drop-in style stack adapters help reach pickup points on vehicles with running boards or side steps. Simply take out the screw pad, drop in the stack adapter extension and replace screw pad to reach lifting points. Stack Adapter Extension Kit includes (4) 3" Stack Extensions, (2) 6" Stack Extensions and (2) Organizer Racks with hardware. Organizer racks mount to automotive lift column to keep adapters within reach. Works with all Challenger two post automotive lifts.

New Textured Powdercoating - New formula provides enhanced durability and a world-class look!

  • 500 hours salt spray / corrosion resistance (ASTM B117)
  • 40 in-lb impact resistance (ASTM D2794)
  • 5B (100%) paint adhesion (ASTM D3359)


Car Lift Innovation Leader
It's what sets Challenger Lifts apart from the rest of the car lifts industry. Innovation is at the heart of important technological advances like the revolutionary Versymmetric automotive lifts, the industry's first 3-stage front and rear arm 12,000 lbs. two post lift (lift anything from a small sedan to a Heavy-Duty Truck!

Challenger Lifts' comprehensive line of automotive lifts and car lift accessories are inspired solutions that create increased shop efficiency and enhanced revenue potential.

So, you want the best? Of course you do! That's why you're looking at a challenger lift right now. You know Challenger. They've been around much longer than a strong majority of all those other inferior auto lift manufacturers out there. And it shows. Nobody makes them better. When it comes to their two post lifts, their CL10 Series lifts are the pride of the industry. They boast features that other competitors wish they could offer. Plus, many models are also made in the USA. Contact us for details. When these other manufacturers claim they're just as good as, or the same as a Challenger, don't believe them. There's a reason they have such a long term list of satisfied customers. The cylinders are premium grade and offer ultra-smooth functionality, and they won't start leaking a day after the warranty expires. They were the first manufacturer to offer three stage arms on their top two post lift models, and most models are ALI certified. Many two post models offer the innovative Versymmetric feature invented by Challenger back in 1992 that allows you to adjust the vehicle forward or rearward on the lift, to adjust the center of gravity closer to the columns. This gives you the best of both worlds, so you don't have to choose between symmetric or asymmetric. They are the true pioneers of the industry. Always leading, always innovating, and always providing smart solutions to satisfied auto shop owners.

Features and Specs

Features

  • ALI Certified
  • 16,000 lbs. Lift Capacity
  • Engineered To Be Widerm, Taller, and Stronger
  • Ready To Tackle the Heaviest Vehicles In Any Fleet
  • 3-Stage Front Arms and 3-Stage Rear Arms
  • Premium Telescoping Screw Pads
  • Adjustable Columns Allow For Flexibility During Installation
    • Adjustable Widths from 12' 10.75" - 13' 4.75" - 13' 10.75"
    • Adjustable Height of 13' 6" - 14' 0" - 14' 6" (Model# CL16-0-3S)
    • Adjustable Height of 15' 6" - 16' 0" - 16' 6" (Model# CL16-2-3S)
  • Single Point Air Actuated Lock Release System Allows Technician to Unlock Both Columns Simultaneously
  • Oversized 5" Steel Pulleys and Heavy-Duty 3/8" Cable Reduces Stress on Equalization System and Increases Cable Life
  • 60" Elongated Lifting Carriage Design Increases Lift Life
  • Adjustable Width and Symmetrical Design Allow Easy Access To Vehicle Interior
  • Padded Overhead Shut Off System Prevents Vehicle Damage
  • Dual Integrated Rubber Door Guards Prevent Door Damage
  • Fully Gusseted Base Plate Design Increases Column Rigidity
  • Premium Textured Powder Coat Finish Provides Long-Lasting Durability
  • Includes (4) 3" and (2) 6" Stack Adapter Extensions with Organizer Rack
  • EV Service Ready Installed at Widest Setting and Equipped with Optional TFPK Footpads

Dimensions

Specifications

Model Number CL16-0-3S CL16-2-3S CL20-0 CL20-2
Description 16K Standard 16K Extended Height 20K Standard 20K Extended Height
Lifting Capacity 16,000 lbs. 16,000 lbs. 20,000 lbs. 20,000 lbs.
Lift Configuration Symmetric Symmetric Symmetric Symmetric
Arm Configuration 3-Stage Front
3-Stage Rear
3-Stage Front
3-Stage Rear
2-Stage Front
2-Stage Rear
2-Stage Front
2-Stage Rear
Maximum Load Per Arm 4,000 lbs. 4,000 lbs. 5,000 lbs. 5,000 lbs.
Rise Height (Maximum
with Stack Adapters)
Min. 75.5" Max. 81.5" Min. 75.5" Max. 81.5" Min. 76.6" Max. 84.6" Min. 76.6" Max. 84.6"
Overall Height Options 162", 168", 174" 186", 192", 198" 162", 168", 174" 186", 192", 198"
Overall Width Options 166.75", 160.75", 154.75" 166.75", 160.75", 154.75" 166.75", 160.75", 154.75" 166.75", 160.75", 154.75"
Drive-Thru Clearance 104.25", 110.25", 116.25" 104.25", 110.25", 116.25" 104.25", 110.25", 116.25" 104.25", 110.25", 116.25"
Floor to Overhead Switch 155", 161", 167" 179", 185", 191" 155", 161", 167" 179", 185", 191"
Arm Reach Min. 36.625" Max. 75" Min. 36.625" Max. 75" Min. 38.5" Max. 62" Min. 38.5" Max. 62"
Screw Pad Height Min. 4.75" Max. 6.5" Min. 4.75" Max. 6.5" Min. 6.2" Max. 7.6" Min. 6.2" Max. 7.6"
Between Columns 120", 126", 132" 120", 126", 132" 120", 126", 132" 120", 126", 132"
Motor
Voltage
3HP
208-230v 60Hz 1Ph
3HP
208-230v 60Hz 1Ph
3HP
208-230v 60Hz 1Ph
3HP
208-230v 60Hz 1Ph
Air Supply Required 90-120 psi 90-120 psi 90-120 psi 90-120 psi
Rise Time 62 s 62 s 62 s 62 s
Min. Ceiling Height Required 13'8", 14'2", 14'8" 15'8", 16'2", 16'8" 13'8", 14'2", 14'8" 15'8", 16'2", 16'8"
Colors Available Textured
Red, Blue, Black
Textured
Red, Blue, Black
Textured
Red, Blue, Black
Textured
Red, Blue, Black



Service Bay Specifications

  • Bay Height: 13' 6" Minimum
  • Bay Width: 16' Recommended
  • Bay Depth: 28' Recommended
  • Power: 208v-230v, 1Ph, 30 Amp Breaker
  • Minimum Concrete: 4" Thick, Reinforced, Free From Cracks/Seams, 3500+ PSI and Cured 28+ Days

* Optional 3-phase electrical also available, please specify at time of order.

  • Warranty: (5) Years on Structure, (2) Years on Functional Parts, (1) Year Labor

Challenger Lifts Warranty Statement
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for all reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI's specifications set forth in CLI's installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and in not transferable. This warranty is valid only if the product has been registered with Challenger lifts.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latched, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters., sync rails, and plungers.

Note: Warranty registration must be completed online at challengerlifts.com/register-your-lift or warranty period will begin from invoice date of lift purchase.
