Corghi A2030 Tilt-Back 26" 30" Tire Changer

In stock
SKU
0-11118134/00
Our Price $8,815.00 Regular Price $9,260.00

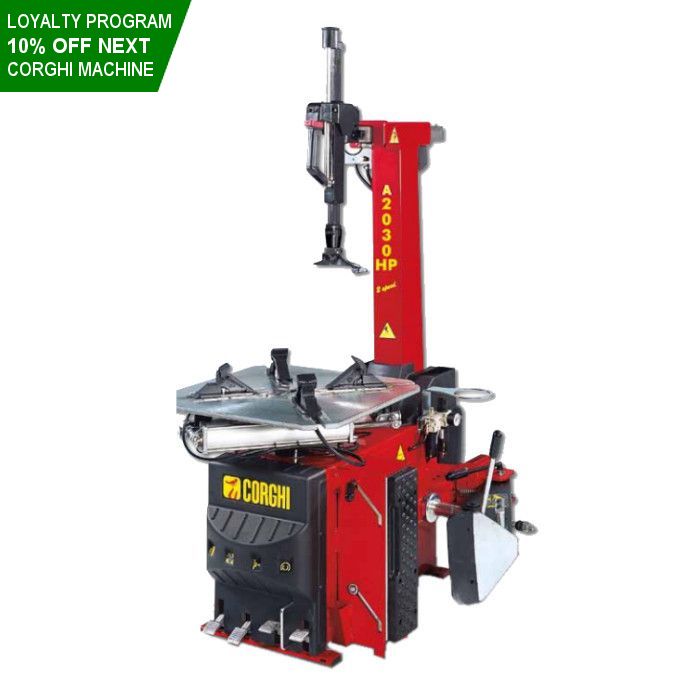

Corghi A2030 Automatic Tilt-Back 26" 30" Tire Changer
The Corghi A2030 Automatic Tilt-Back 26" 30" Tire Changer is the strongest built, largest capacity, tilt-back rim clamp machine available. It handles wheels up to 26" and by adding a simple economical expansion kit, you can increase up to a 30" wheel. This machine also incorporates an ergonomic adjustable bead breaker shovel that allows you to adjust the shovel upward to be on the centerline of larger diameter wheels. This machine can truly cover with ease the widest range and combination of wheels and tires of any machine on the market. Like all Corghi machines, you get: Flexibility, Durability, and Reliability at the most competitive price.

Description

Corghi USA

Corghi A2030HP Automatic Tilt-Back 26" 30" Tire Changer

The Corghi A2030HP Automatic Tilt-Back 26" 30" Tire Changer is the strongest built, largest capacity, tilt-back rim clamp machine available. It handles wheels up to 26" and by adding a simple economical expansion kit, you can increase up to a 30" wheel. This machine has also incorporates an ergonomic adjustable bead breaker shovel that allows you to adjust the shovel upward to be on the centerline of larger diameter wheels. This machine can truly cover with ease the widest range and combination of wheels and tires of anymachine on the market. Like all Corghi machines you get: Flexibility, Durability, and Reliability at the most competitive price.

Features and Specs

Features

  • Handles Wheels Up To 26"
  • Optional Jaw Adapters Available To Change Up To 30"
  • Has A Built-In Ergonomic Adjustable Bead Breaker Shovel That Lets You To Adjust The Shovel Upward To Be On The Centerline Of Larger Diameter Wheels
  • This Machine Offers The Widest Range And Combination Of Wheels And Tires Of Any Machine On The Market

Specifications

  • Turntable Standard 26" | 30" Upgrade Kit
    • Internal Clamping Capacity: 13" - 29" | 13" - 29"
    • External Clamping Capacity: 10" - 26" | 10" - 26"
    • External Clamping With Jaws Adapters: 8" - 30" | 8" - 30"
    • External Clamping Without Jaws Adapters: 3.5" - 14" | 3.5" - 14"
    • External Clamping With Jaws Adapters: 3.5" - 12" | 3.5" - 12"
    • Horizontal Arm Stroke: 8" - 26" | 12" - 30"
    • Maximum Tire Diameter: 43"
    • Maximum Tire Width: 14"
    • Dv Version Rotation Torque: 958,83 lb-ft
    • Dv Version Rotation Speed: 6 - 15 Rpm
    • Height Above The Ground: 26.57"
  • Bead Breaker
    • Type: Adjustable Arm With Extending Shoe
    • Maximum Opening: 14.9"
    • Shoe Force: 15500 N
    • Support: Telescopic
  • Tool
    • Working Range: 8" - 26"
    • Column: Pneumatic Tilting
    • Head Clamping: Pneumatic
  • Power Supply
    • Electrical 1Ph Dv Version: 115 V - 0.75 kW
    • Operating Pressure: 145 psi
    • Weight: 571 lbs.
