Corghi EM9980C Plus Automatic Diagnostic Wheel Balancer

In stock
SKU
0-21109983/00
Our Price $16,936.00 Regular Price $17,790.00
Corghi EM9980C Plus Automatic Diagnostic Wheel Balancer |
Touchless | Diagnostic Performance Series

The Corghi EM9980C is a super-automatic diagnostic touchless wheel balancer with touchscreen interface and automatic wheel detection and electronic clamping. Fast, accurate, reliable and easy-to-use.

Description

Corghi USA

Corghi EM9980C Plus Automatic Diagnostic Wheel Balancer |
Touchless | Diagnostic Performance Series

The Corghi EM9980C is a super-automatic diagnostic touchless wheel balancer with touchscreen interface and automatic wheel detection and electronic clamping. Fast, accurate, reliable and easy-to-use.

Fully Automatic
No manual operations required the operator. Reduced spin and diagnostic times to make it one of the fastest on the market.
Touchscreen Interface
The graphic interface and touchscreen technology simplify and speed up operations and work programme selection.

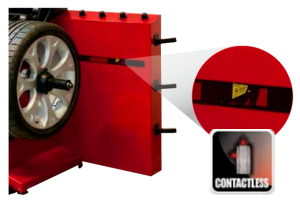

Wheel Dimension Measurements with Contactless System
High precision laser sensors automatically measure all wheel dimensions in a few seconds during the measurement cycle.

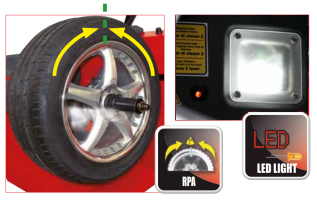

Automatic Positioning and LED Illuminator
At the end of the spin cycle, the wheel is braked and brought automatically into the balancing position (RPA). The integrated LED illuminator illuminates the work area to facilitate wheel cleaning and application of the counterweights.
Adhesive Counterweight Application
The internal point laser indicates the correct position for applying the adhesive counterweights with absolute precision.
Hidden Weight Automatic
New 'Hidden Weight' programme to divide the external side balancing adhesive weight into two equivalent weights hidden behind the spokes. A completely autonomous operation.
Laser Run-Out Measurement
High-precision measurement of radial and lateral wheel run-out (1st harmonic and peak-to-peak) and calculation of the best coupling of parts, resolving the typical problems of road vibration.

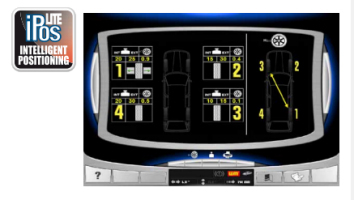

Intelligent Positioning Lite
A special vehicle tyre set diagnostic tool for checking run-out and imbalance. Once all the wheels are memorised, EM9980C suggests their best placement on the vehicle placement of the wheels themselves on the vehicle for maximum comfort and safety.
Electronic Clamping
New electromechanical system which reduces working times and increases centring precision.

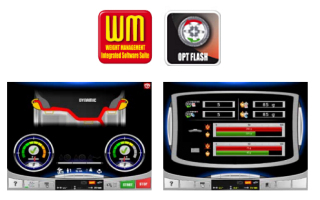

Weight Management & Opt Flash
Special suite of programmes including LESS WEIGHT, which cuts job times (20%) and reduces the quantity of counterweights used (30%), for more cost-effective, environmentally friendly operation.

Minimises road noise by allowing the operator to alter the position of the tyre on the wheel in order to optimise quietness.
Multifunction (One-Touch) Button and Weight Tray
One-Touch multifunction button - Makes the selection of work programmes simpler and quicker.

Ergonomic and functional weight holder top with large trays for different types of counterweights and tools.
USB Ports
USB ports for connection to peripheral devices and easy software upgrading.
Slanted Front and Compact Wheel Guard
Slanted front panel, ensuring operator's easier access to wheel inner section.

Compact wheel guard (patented), designed for wheel balancer wall mounting and accomodating wheels up to a max. diameter of 44" (1,118 mm).

Features and Specs

Features

  • Fully Automatic
  • Touchscreen Interface
  • Wheel Dimension with Contactless System
  • Automatic Positioning and LED Illuminator
  • LaserLine Pointer for Application of Counterweights
  • Hidden Weight Automatic
  • Laser Run-Out Measurement
  • Intelligent Positioning Lite
  • Automatic Wheel Clamping
  • Weight Management
  • Multifunction (One-Touch) Button
  • Ergonomic and Functional Weight Tray
  • USB Port for Software Upgrading
  • Slanted Front and Compact Wheel Guard

Specifications

  • Power Supply Voltage: 230V / 1ph / 50hz, 115V / 1ph/ 60hz
  • Total Power Absorption: 550 W
  • Balancing Speed: 75-85-98 rpm
  • Max. Unbalance Value Calculated: 999 g
  • Resolution: 1-5 g
  • Average Measurement Time: 7 s
  • Shaft Diameter: 40 mm / 1.57"
  • Rim Diameter Setting Range: 1"-35"
  • Rim Diameter Measurement Range: 10"-32"
  • Max. Wheel Width (with Guard): 22" / 560 mm
  • Max. Wheel Diameter (with Guard): 44" / 1118 mm
  • Max. Wheel/Machine Distance: 10.82" / 275 mm
  • Max. Wheel Weight: 165.3 lbs. / 75 kg
  • Machine Weight: 403.4 lbs. / 183 kg
