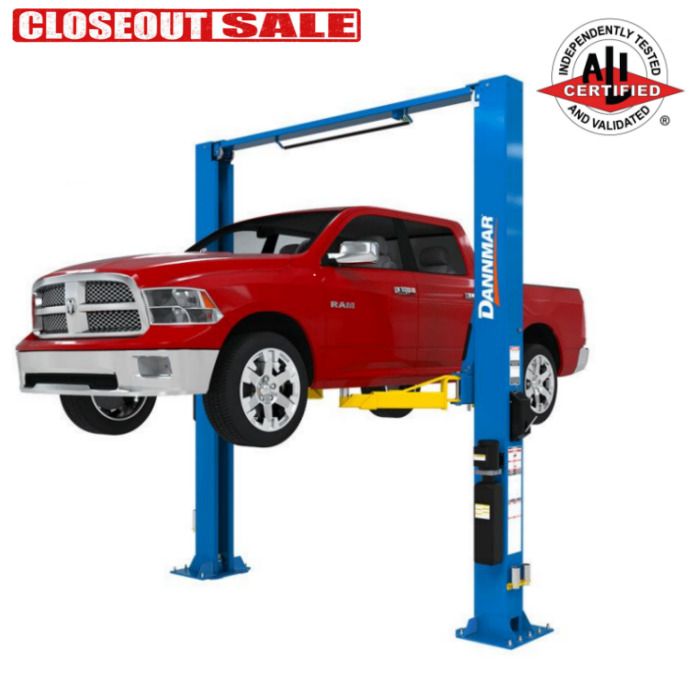

Dannmar D2-12C Symmetric Heavy-Duty Two Post Lift
Dannmar D2-12C Heavy-Duty Two Post Lift 12,000 lbs. Capacity
Symmetric Clearfloor Triple Telescoping Low-Profile Arms
The D2-12C is Dannmar's closed-top model, thus providing clear floor convenience. The closed-top/clear floor two-post lift allows uninterrupted floors so that you can roll floor jacks, toolboxes, and other equipment underneath the elevated vehicle without having to travel over and bang through a floor-mounted hydraulic line panel. This lift has a big 12,000 lb. lifting capacity. This lift routes the operating hydraulic lines up and across, 14 feet height hose routing above the floor. The D2-12C is ALI and ETL Certified.
Description
Dannmar D2-12C Heavy-Duty Two Post Lift 12,000 lbs. Capacity
Symmetric Clearfloor Triple Telescoping Low-Profile Arms
Dannmar's D2-12C is loaded with features to make your lift work better. With triple-telescoping arm sets, three-stage front and three-stage rear arms this Dannmar provides greater maximum reach with minimum retraction. This strong lift system will raise just about all passenger vehicles and many heavy-duty pickup trucks. The high-speed hydraulics, free-flow, high-pressure 3/8" hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speeds. The safe and rugged D2-12C two-post lift features extended height columns for added overhead clearance. The D2-12C is ALI and ETL Certified.Features and Specs
Features
- 12,000 lbs. Lifting Capacity
- Dual Direct-Drive Hydraulic Cylinders
- Heavy-Duty 1/2" Aircraft-Quality Equalizer Cables
- Oversized Cable Sheave Diameter Reduces Cable Fatigue
- Durable, Rubber Lift Pads with Stackable Adapters
- Dual-Synchro Equalization System for Equal Lifting
- Padded Overhead Safety Shutoff Bar
- Extended Height Top-Beam Provides Greater Clearance
- Single-Point Safety Release
- Oversized 53" Tall Carriage for Superior Strength
- Electric/Hydraulic Power System
- Oversized A36 Steel Base Plates
- Self-Lubricating Dura-Glide UHMW Polyethylene Bearings
- Safety Locks in Each Column Spaced Every 3"
- Automatic Arm Restraints
- Triple-telescoping arms provide increased range
- 16-Piece Specialty Adapter Set Includes:
- (4) 6" Stackable Adapters
- (4) 3" Stackable Adapters
- (4) Polyurethane Contact Pads
- (4) Frame Cradle Pads
- Convenient Storage is Included for Truck and Van Adapters
- ALI Certified Car Lift
Specifications
- Style: Symmetric
- Lifting Capacity: 12,000 lbs. (5,443 kg)
- A - Lowered Height + Pad: 4.25" (108 mm)
- B - Max. Lift Height (Top Lock): 80" (2,032 mm)
- C - Max. Rise: 69" (1,753 mm)
- D - Height Overall: 168.75" (4,286 mm)
- E - Width Overall: 155.25" (3,943 mm)
- F - Width Outside Columns: 142.5" (3,620 mm)
- G - Width Inside Columns: 119.5" (3,035 mm)
- H - Drive-Thru Clearance: 105" (2,663 mm)
- I - Floor to Top Switch: 162.75" (4,131 mm)
- J - Arm Reach: 31.5" (800 mm) - 58" (1,473 mm)
- Max. Load per Arm: 3,000 lbs. (1,361 kg)
- Time to Full Rise: 55 seconds
- Noise: 45 dB
- Motor: 220 VAC / 60 Hz / 1 Ph
Limited Warranty
- Three Years (36-Months) Warranty on the Lift Structure [*] [**]
- One Year (12-Months) Warranty on the Hydraulic Cylinder(s) and Power Unit [*] [**]
- One Year (12-Months) Warranty on Operating Components [*] [**]
- One Year (12-Months) Warranty on Electrical Components [*] [**]
*As determined by Warrantor in its sole discretion. Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.
**For all Dannmar brand Two-Post or Four-Post Vehicle Service Lifts (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 6/1/2020.
