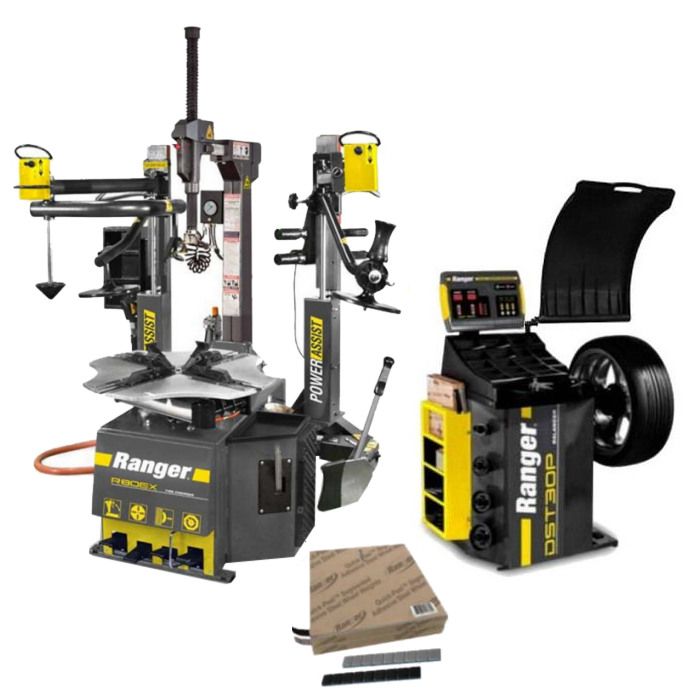

Ranger R80EX Tire Changer + DST30P Wheel Balancer + Weights Combo

Ranger R80EX Tilt Back Dual-Tower Assist Tire Changer
3 HP Motor (208-240 VAC 50-60 HZ) 10 - 34" Capacity

The Ranger R80EX tire changer features a dual-assist, tilt-back tower design, so it's outfitted with the industry's best and most powerful tools. With the R80EX, you get the classic, rugged reliability Ranger is known for, plus dozens of standard features including Bilateral Power Bead Loosener, RimGuard Technology, and TargetBlast Bead Seating.

Ranger's Updated and Incredibly Advanced Tire Changer
Looking to save time? An R80EX tire changer is a must-have machine for busy shops that don't have a minute to waste. A multi-profile traveling drop-center tool, top bead assist rollers, dual lower bead lifting discs and a nylon non-marring wheel restraint device are important tire shop tools designed to dramatically reduce effort, increase safety and help minimize operator fatigue. A large 3?4" capacity turntable with adjustable hardened-steel RimGuard wheel clamps helps broaden the service range, so you can handle virtually any wheel that rolls in your shop. Explore this tire machine if your shop life demands a tool that will generously handle round-the-clock use and abuse.

Adjustable RimGuard wheel clamps
Ranger's trademark wheel clamps extend 10" - 3?4" and feature internal and external multi-teeth jaws.

Advanced clamp positioning
Variable clamp positioning makes wheel service simple, perfectly controlling the wheels when clamping them. Operators have the freedom to freely and precisely position clamps within the entire clamping range. There's no need for the clamps to cycle the full range.

Easier bead lubrication
A geometric tabletop provides for easier bead lubrication and allows operators to make visual inspections of the lower bead during mounting and inflation procedures.

Power-controlled bead loosener
A bilateral, power-controlled bead loosener features single-lever control on the shovel handle. This ergonomic design eliminates traditional foot-pedal controls that often force technicians into unbalanced working stances when loosening beads. Designed for maximum comfort, efficiency, safety and ease of use, this valuable feature helps deliver additional power, speed and control, especially when servicing large or wide assemblies.

Adjustable bead loosener shovel blade
A multi-axis and adjustable bead loosener shovel blade helps accommodate a larger variety of tire and wheel combinations.

100% stainless-steel bead loosener cylinder
No more worrying about moisture contamination from corrosion due to air source condensation. The stainless-steel cylinder is completely resistant to chemical erosion, rust and other damaging effects of weather over time.

Dual-flange bead loosener
The oversized axle minimizes blade flex and improves durability.

Enhanced bead-breaker arm
The tire changer's arm features a rugged box frame construction that increases strength and ensures years of dependable service and performance.

Pneumatic control valves
Industrial-grade, 45-micron pneumatic control valves feature die cast and machined bodies constructed from zinc and aluminum. High-performance polyurethane seals and self-lubricating, Teflon piston guides provide increased service life and performance at the highest level possible within almost every imaginable working condition. Valve plungers feature muffled extrication ports that direct any dirt or contamination accumulated on the outside perimeter of the spool to be automatically blown away each time the valve goes into the release position.

Balanced flywheel
A balanced flywheel helps the machine run smoothly, reduces vibration and helps minimize associated stress on other machinery components.

Simple foot-pedal control
Durable forged steel (instead of cast iron) foot pedal levers will stand up to everyday use and abuse in high-volume tire centers. Snap action spring return means precise and controlled operation. Foot-pedal control valves feature multi-link rod connections for non-binding plunger movement and precise bilateral control.

Sealed electrical components
All main-lead electrical terminals, auxiliary switches and motor enclosures are sealed for air-tight, dust-free and contamination-proof protection of terminal leads.

Pneumatic tubing
Ranger Next Generation tire changers feature high-pressure polyurethane pneumatic tubing with mirror-smooth seamless bore for exceptional flow rates, high abrasion resistance, high burst tolerance and maximum kink resistance.

Advanced drive belt system
Specially engineered drive belt features convex sidewalls to distribute wear evenly while providing proper belt support for improved service life. Both flex-bonded cords and flex-weave covers resist the effects of oil, heat, ozone, weather and aging.

Maintenance-free gearbox
A maintenance-free gearbox features a large oil and grease reservoir that helps provide efficient heat dissipation and improved lubrication for longer service life. Internal baffles and a constant-seating stress flange gasket ensure positive, leak-free venting. The rugged gearbox enclosure is precision-milled for precise alignment of horizontal and vertical bases and features precision helical gears that operate much more smoothly and quietly than typical spur gear transmissions. The rugged housing provides maximum strength for extreme durability under hard working conditions and greater precision under load during worm and gear alignment. High-strength, oversized worms and worm gears are straddle-mounted between heavy-duty tapered roller bearings, providing rugged dependability.

Updated electric motor
Improved electric motor features the best of proven technologies, including rugged copper rotor construction, high-quality bearings, thermal-cool epoxy insulation and durable rolled steel frames.

Left and right-side tower drop-center design
Powerful left-side assist tower features a multi-profile traveling drop-center tool that holds stubborn sidewalls in the drop-center, a single lower bead lifting disc and a pneumatic non-marring wheel positioning and restraint device that simplifies external mounting procedures and helps restrain wheels during inflation. A tire iron slot built into the bead-lifting discs gives operators additional leverage for difficult tire handling. Upfront controls and a sensible ergonomic design provide ease of use and more efficient operation. Heavy-duty, tri-flange, cast-iron assist tower carriage features linear way bearings for years of maintenance-free operation.

Additionally, a right-side assist tower features dual power-drop top bead assist rollers that help hold top beads in place during removal and installation of tough sidewall tires. An additional bead-lifting disc and sidewall roller provide even more tire handling capability.

Tilt-back tower design
The tilt-back tower provides greater clearance and access for tire removal and inflation. Pneumatic-lock tool head stays positioned on the tower return for instant set up for like sets of tires and wheels.

Stainless steel and aluminum pneumatic cylinders
Ranger's cylinders are designed to reduce machine vibration and provide low friction and long life operation. Internal end-of-stroke cushions come standard and help provide support at the end of each full stroke to reduce wear on seals, wear band and piston rod. Permanent lubrication design provides outstanding service life.

Multi-function mount and demount head
The hardened alloy steel mount and demount head has a unique equi-dimensional shape that allows you to perform all changing functions with the tool head in the same position. The micro-smooth tool head surface glides tire beads effortlessly during mounting and demounting procedures to ensure costly tire damage is minimized.

Standard wheel service accessories
Important wheel service accessories come standard, like a large soap bucket with brush and a multi-piece plastic wheel protector kit that includes turntable jaw covers, bead-breaker blade boots and specialized mount / demount head covers to help protect delicate wheels. We throw in a hardened steel tire iron and bead lever tool to assist during all tire mounting and demounting operations.

Spring-assisted tool shaft
A rigid, 45 mm spring-assisted hexagonal vertical tool shaft, combined with a hardened-steel horizontal outrigger support arm, maintains perfect position of the mount-demount tool head during all tire service procedures to reduce the chance of expensive wheels getting damaged.

Guide bearings for all moving parts
All moving parts feature maintenance-free linear guide bearings for easy adjustment of both vertical and horizontal wheel settings. The non-flex horizontal arm also features a hardened lower roller guide for smooth and controlled in-and-out movement. Integrated rubber bump-stops ensure smooth return during tilt-back operations to help reduce shock loading and minimize wear on tower guides and moving parts.

Foot-controlled tire inflator
A simple-to-use tire inflator features foot-pedal operation and inflation hose with a sure-grip clip-on valve chuck, enabling hands-free operation. Integrated air pressure dump valve enables you to lower tire pressure with a simple push of a button.

TurboBlast bead seating
Ranger tire changers feature the renowned TurboBlast bead seating system that blasts a powerful air burst between the tire and rim to help seat stubborn beads fast. A durable, non-marring nylon discharge barrel features a contoured tab that locks securely on the edge of the rim for better control during air discharge between the tire and wheel. A welded-steel, eight-gallon surge tank is larger than competitive models for all the inflation power you need, when you need it.

Space for storage
Plenty of storage area for tools and accessories. Helps keep your shop tidy and operation-critical tools close at hand.

Hose/wire protection
Stainless steel braided metal conduit protects hoses and wires from abrasion and wear.

Motorcycle clamps (optional)
Optional motorcycle turntable clamps add a whole extra level of versatility. Expand your capabilities, clientele and bottom line.

Ranger DST30P Wheel Balancer
1.5HP Motor (110 or 220 VAC 50-60HZ) 40mm Shaft

The DST30P accurately and efficiently calibrates wheel and tire configurations. Like the DST-2420 wheel balancer, the DST30P handles wheels up to a 30” diameter. It also contains many of the same working components as the DST-2420 but with one exception: we took the 64-tooth magnetic transducer encoder from the DST-64T and built it into this smaller unit for minimal yet incredibly precise wheel weight placements.

Planning on balancing truck and SUV tires? We highly recommend purchasing the Truck Cone Kit.

The larger encoder features precision-cut square teeth to convert rotary position to a digital electronic signal, quickly achieving maximum profile and top-dead-center positioning. As part of our ongoing mission to supply shops and garages of all sizes, we reduced the unit's footprint by narrowing the chassis.

If you're looking for more precise measuring without the digital frills, add-ons and increased body size of the DST-64T, the DST30P is the perfect wheel balancer for your shop. It's a cost-effective hybrid unit that offers the most precise readings you'll ever generate from a wheel balancer.

Direct-Drive
The Direct-Axis drive system helps keep the DST30P running smoothly over time. A single belt connects the motor and unbalance sensor, eliminating most maintenance costs during your wheel balancer's many years of service.

Highly Precise Digital Sensor Technology
The DST30P doubles the potential placement for wheel weights while maintaining a space-conscious and highly cost-effective shop solution. Dynamic, static and ALU balancing modes are standard on each unit, featuring dual plane calibration for all OEM configurations and performance wheels.

Ranger's proprietary Digital Sensor Technology offers a 16-digit digital sensor processor and single-chip technology for better speed and accuracy in your readings. OEM and performance wheels require this sort of sophisticated technology for proper balancing, so be sure any wheel balancer you choose is fully capable of servicing these specialized wheel types.

Single-chip circuit board architecture upgrades performance and reliability over multi-chip installations, (e.g., latency reductions, substantial boost in device throughput). A speedy, dedicated hyper transport protocol lets data communicate with the micro-processor much faster than would otherwise be possible. Single-chip boards also use less power and better dissipate heat.

Multi-Directional Quartz Piezoelectric Load Sensors
Dual-component piezoelectric quartz load sensors and digital rotation encoder measure longitudinal, transversal and shear effects for multi-directional force unbalance detection. The piezoelectric force sensors are the most sensitive sensors we have ever made, offering superior stability and fatigue resistance for unlimited service life with your wheel balancer. High-rigidity quartz crystal sensors offer high frequency detection in all three measured directions.

Quick and Precise Setup
A diverse arrangement of hardened-steel mounting cones lets you work with virtually all wheel types, including most light trucks and SUVs. A rubber “quick-nut” bell adapter, with a non-marring rear cone mount pressure cup, holds mounted wheels securely in place and is sure not to damage tires or wheels during balancing procedures.

Mounting Cone Package
The DST30P wheel balancer tooling package includes car and light truck cones, as well as a heavy-duty truck cone. This package includes three "smaller" cones: 1.75" - 2.75", 2.75" - 3.50" and 3.50" - 4.25", as well as one truck cone 4.50" - 5.00". Once an optional accessory, the 4.5" - 5.00" truck cone package is now standard.

An even larger double-sided centering Truck Cone Kit that fits hub sizes 4.75" - 6.75" is sold separately, but also fits the DST30P.

The double-sided centering cone fits hub sizes 4.75" - 6.75". Put simply, Ranger wheel balancers easily accommodate most OEM and aftermarket wheel configurations.

Tape Weight Feeder
A tape weight feeder is located conveniently on a side-shelf that's built into the wheel balancer. You'll never have to worry about losing or misplacing your Ranger easy-to-peel adhesive tape weight.

64-Tooth Encoder Improves Automatic Weight Optimization
The weight calculations on the DST30P wheel balancer are more accurate than the DST-2420 - twice as accurate, in fact! We've taken something great and made it even greater, now balancing your tire and wheel configurations with the most precise placements possible. The 64-tooth magnetic transducer encoder offers more precise placement readouts by making it easier to achieve maximum profile and top-dead-center positioning. This means you use less weight while you save more time, increasing your bottom line.

Full-Tilt Display Panel
We've taken the touch-pad display panel on the DST-2420 wheel balancer and raised it up, tower-style, for the DST30P. This design improvement offers more flexibility in how you work. The extended, fully adjustable display avoids the problem of glare that can shroud readouts on the screen, and it ensures differently abled operators will enjoy a more ergonomic experience as they calibrate tire and wheel configurations.

LED Rolling Wheel Weight Displays
Highly visible LED displays show you exactly where to place the weights in seconds flat. These LED indicators let you see weight positions when the mounted wheel is rolled top-dead-center. As mentioned, the DST30P features an improved encoder wheel over the DST-2420, which means the LED display on the DST30P is more sensitive and more accurate than ever before.

Wheel Weight Starter Kit
When you buy any one of Ranger's wheel balancers, you get a starter set of wheel weights included with your purchase. The kit has one bulk roll of 100 silver adhesive steel tape weights and 100 black adhesive steel tape weights. We also include one starter box of mixed clip-on steel weights. Of course, additional weights can be purchased in these bulk packages at your convenience.

Quick-Peel Segmented Adhesive Black & Silver Steel Tape Wheel Weights

Many states are banning the use of lead wheel weights. Ranger steel weights come in black and silver. Our Stick-On Steel Wheel Weights offer the best overall fit, as well as the most reliable and cost-effective choice. Ranger steel wheel weights are designed to have less impact on the environment and are corrosion resistant. Our .25 oz. wheel weights are perfectly sized and weighted for most wheel balancing applications, and when paired with a Ranger wheel balancer, you'll never use more weight than necessary for the job. Our adhesive is extra-sticky, lessening the chance of the weight falling off the wheel and improving your level of customer service. Customers will know the quality difference when you service their vehicle with Ranger wheel weights.
