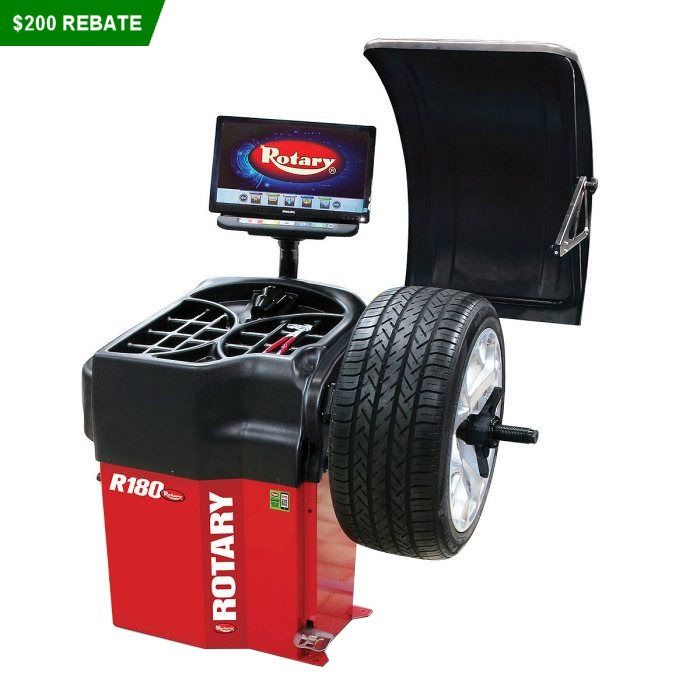

Rotary R180 Pro 3D Auto Wheel Balancer
Rotary R180 Pro 3D Auto Wheel Balancer
Electronic Balancer with Microprocessor
Rotary's R180 Pro 3D Auto Wheel Balancer is our premier wheel balancer. The R180's automatic balancing mode provides the precision that ensures your techs are able to do the job right the first time. The automatic wheel dimension sonar and laser rim profile scanner minimize the number of necessary wheel weights - saving you time and money.
Description
Rotary R180 Pro 3D Auto Wheel Balancer
Electronic Balancer with Microprocessor
Rotary's R180 Pro 3D Auto Wheel Balancer is our premier wheel balancer. The R180's automatic balancing mode provides the precision that ensures your techs are able to do the job right the first time. The automatic wheel dimension sonar and laser rim profile scanner minimize the number of necessary wheel weights - saving you time and money.
THE R180 SAVES TIME AND MATERIAL COST
EQUIPPED WITH AUTO WHEEL DIMENSION
SONAR AND LASER RIM SCANNER
Perfect balancing with maximum speed and precision. The lase pointer indicates the exact positioning of the weights.
AUTOMATIC BALANCING MODE
Faster efficient balancing reduces wheel weight consumption while reducing spins and repositioning time lost. Interactive screen output identifies hidden weight location position,
provides detailed analysis for precision weight placement.
AUTOMATIC LOCK IN POSITION
Automatic start when the cover is lowered.
- Automatic stop in the external unbalanced position
- Automatic rotation to the internal side
- Automatic stop in the internal unbalanced position
AUTOMODE
After lowering the hood the sonar automatically detects wheel dimension.
- The laser scans rim profile
- Balancing program is auto selected
- Adhesive weights are positioned and memorized
- Wheel spoke quantities are checked and position for proper location of hidden weights is located
- Easily switch readout from ounces to grams
LINKED MONITOR KEYBOARD
Linked directly to a standard monitor, this durable touchpad allows for a "gloved" input with the convenience of a touch screen monitor.
GUIDED BALANCING PROCEDURE
The functions related to each key vary according to use and are identified by icons on the display for easier understanding. Residual static readings are displayed throughout service functions.
- Hidden Weight Program
- Split Weight Program
- 3 Automatic ALU S Programs
Features and Specs
Features
- Electronic Balancer with Microprocessor
- Auto Wheel Dimension Sonar
- Rim Profile Laser Scanner
- Automatic Balancing Mode
- Guided Balancing Procedure
- Automatic Lock In Position
- Multiple Balancing Programs
- Hidden Weight Program
- Split Weight Program
- 3 Automatic ALU S Programs
- Save Weight Memory Feature
- Pinpoint Laser Weight Indicator
Standard Equipment
- HW150400132 (7) Piece Pro Collet Kit 40mm
- GAR112 Light Truck Cone 3.75"-5" (95mm-124mm)
- GAR345 Large Quick Nut Replacement Lock
- Caliper and Pliers
Specifications
- Wheel Diameter: 10"-30" Automatic
- Tire Width: 1.5"-22"
- Max Tire Diameter: 44"
- Max Shaft Weight: 176 lbs. (80kg)
- Read Out Accuracy: 1g
- Cycle Time: 6 Seconds
- Rotation Speed (rpm): <100
- Power Supply: 110v / 1Ø / 60 Hz
- Dimensions: 57.125" H x 53.625" W x 30.375" D
- Dimensions with Hood Up: 66.5" H x 53.625" W x 35.625" D
- Machine Warranty: (3) Years Functional, (1) Year Labor
Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.
Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.
VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.
VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.
This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.
This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.
This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
