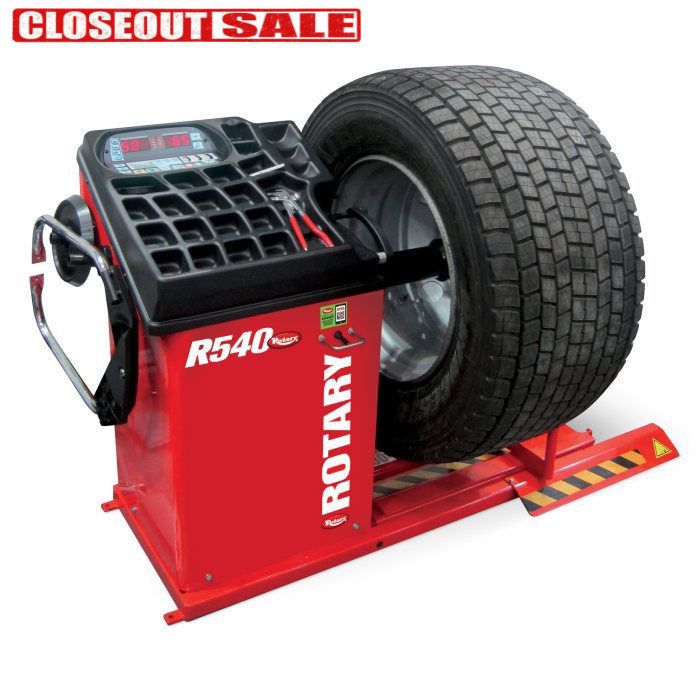

Rotary R540 RTLD Truck 2D Wheel Balancer
2D Technology Electronic Balancer with Microprocessor
Rotary's R540 RTLD Truck 2D Wheel Balancer is a versatile commercial truck balancer that can handle large and small vehicles, from a Fiesta to a Freightliner. Designed for fast accurate balancing of commercial heavy-duty, light-duty trucks and passenger vehicle wheels. It's a big package that'll handle everything that'll roll into your shop.
Description
Rotary R540 RTLD Truck 2D Wheel Balancer
2D Truck & Passenger Technology Balancer
Rotary's R540 RTLD Truck 2D Wheel Balancer is a versatile commercial truck balancer that can handle large and small vehicles, from a Fiesta to a Freightliner. Designed for fast accurate balancing of commercial heavy-duty, light-duty trucks and passenger vehicle wheels. It's a big package that'll handle everything that'll roll into your shop.
2D TECHNOLOGY ELECTRONIC BALANCER WITH MICROPROCESSOR
FEATURES AUTO STOP ON TOP
Auto Lock - The balancer automatically stops in the external unbalanced position.
AUTOMATIC BALANCING MODE
Versatile machine designed for easy, fast and accurate balancing of motorcycle, car and commercial wheels. Microprocessor controlled with self-calibration and self-diagnostics. Specific balancing programs for static, dynamic and ALU wheels. Easy Static mode - balance with one quick data entry. One single spin with low rotation speed provides all the values. Readout of out of balance values and the related position on the wheel. Wheel diameter and width in inches or millimeters. Split weight / hidden weight feature in passenger mode. Unbalance readout in grams or ounces.
AIR BRAKE
Electro-pneumatic brake keeps the wheel in the unbalance position.
STANDARD AIR TIRE LIFT
Air tire lift is standard with 441 lbs. capacity.
HIDDEN WEIGHT PROGRAM
Perform aluminum wheel balancing with hidden weights above the spokes of the wheel.
LARGE DIGITAL DISPLAY
Bright red, easy to read digital display with integrated keyboard.
Features and Specs
Features
- Automatic Balancing Mode
- Microprocessor Controlled
- 2D Data Entry
- Air Tire Lift
- Auto Stop On Top Auto Lock
- Air Brake
- Bright Easy To Read Digital Display
- Quick Nut Locking
- Passenger and HD Adapters
- Built-In Wheel Lift
- Auto Stop On Top
- Break at Weight Position
- Easy Static Mode
- Split Weight / Hidden Weight Mode (Passenger)
Standard Equipment
- GAR111 (4) Passenger Tire Cone Kit
- GAR112 Light Truck Cone 3.75"-5" (95mm-124mm)
- GAR113 Light Truck Cone 4.65"-6.8" (118mm-174mm)
- GAR114 (2) Truck Cones 7.9" - 8.7" - 11" (202mm - 221mm -281mm)
- GAR122 Truck Spacer
- GAR124 Spacer
- GAR344 Quick Lock
- Calibration Kit
- Width Calipers
- Weight Pliers
- Calibration Weight
Specifications
- Wheel Diameter: 10"-30"
- Tire Width: 1.5"-22"
- Max Tire Diameter: 51"
- Max Shaft Weight: 441 lbs. (200kg)
- Read Out Accuracy: 10g Commercial
- Read Out Accuracy: 1g Passenger
- Cycle Time: 7 Seconds
- Rotation Speed (rpm): 100 Commercial
- Rotation Speed (rpm): 80 Passenger
- Power Supply: 110v / 1Ø / 60 Hz
- Dimensions: 40" H x 69.5" W x 26.25" D
- Machine Warranty: (3) Years Functional, (1) Year Labor
Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.
Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.
VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.
VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.
This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.
This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.
This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
