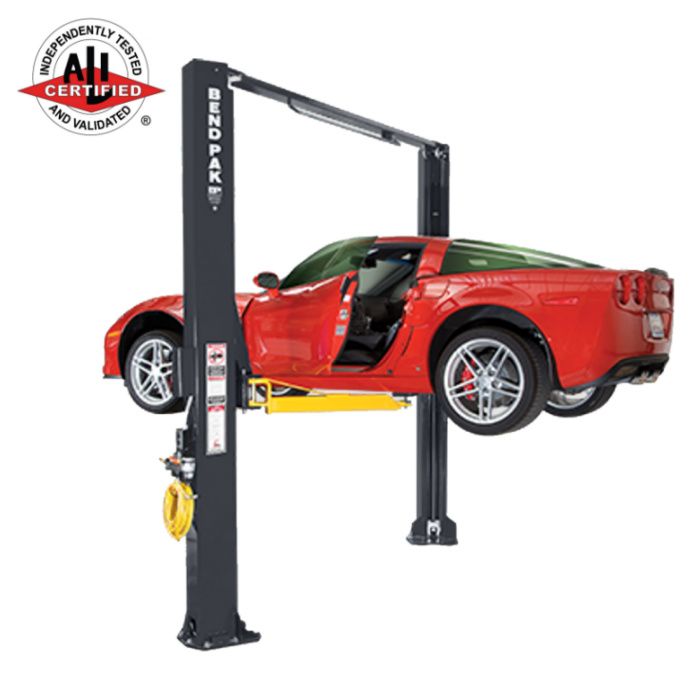

BendPak XPR-10AS Two Post Auto Lift
The XPR-10AS 2-post lift features the superior direct-drive design with rotated columns to allow you to open the car doors wider allowing easier access. While it is designed as an asymmetric lift, it's innovative design also allows you to move the automobile forward more if it does not balance out well asymmetrically. Truly the best of both worlds. Plus, you can set it up wide or narrow, depending on your shop's needs.
The XPR-10AS BendPak Lift is ALI and ETL Certified.
The BendPak XPR-10AS offers exceptional direct-drive lifting performance with an important added benefit. We rotated both posts inward to give you the ability to open a vehicle's doors while it's still raised, all without sacrificing drive-thru clearance.
Current Lead Time 4-6 Weeks
The BendPak XPR‐10AS asymmetric two‐post lift offers the convenience of wide or narrow installation wrapped up into one configurable package. This durable, safe, and reliable car lift features an expandable top beam and Tru‐Metric arms to suit virtually every vehicle lifting requirement. The simple, yet highly sophisticated lift design keeps service and maintenance costs to a minimum, delivering lower operating expenses and higher productivity.
The XPR‐10AS features double‐telescoping screw pads with gouge and tear resistant polyurethane pads to help increase workplace safety and reduce operating costs. A set of our 63mm stacking adapters are also included as standard accessories. This true asymmetric lift features 30° rotated columns for added door‐opening clearance and interior car access. The exclusive Tru‐Metric carriage and arm design combines to give users the ability to load vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column).
BendPak XPR-10AS 2 Post Auto Lift | Asymmetric | Clear Floor
This is our most popular 2 post lift and it's easy to see why. It's our most versatile model, packed with features to make your job easier, and more productive. The smart design of 30 degree rotated columns and asymmetric design means no more dings when your technician opens the automobile doors. Combined with premium features and leading technology and you've got a lift that is a leader in it's field. The BendPak Tru-Metric design means that you can not only position a vehicle asymmetric (center of auto behind columns), as well as symmetric (center of auto centered between columns). It truly gives you the best of both worlds. These features combine to increase not only safety, but also worker productivity. This is a closed top, asymmetric, clearfloor lift with an added bonus - you can also position a vehicle symmetric.
The XPR Series 2-post car lift is engineered for professional auto shops as well as the home hobbyist. It is comprised of features to make is safer, more reliable and more durable than the competition. They also made it more efficient, to increase your shop's productivity and reduce expenses and maintenance as you'll see if you continue scrolling down below. If you want a premium automobile lift at a reasonable price, the XPR lifts are for you.
These 2-post models are suitable for sports cars and compact cars as well as commercial vehicles and full size pick up trucks. Direct drive technology means that each lift carriage is raised directly by a low pressure hydraulic cylinder. This means less stress on the hydraulic system and a safer, more reliable design.
All BendPak clearfloor models utilze Large 5" diameter cable sheaves to help equalizer cables last longer. 16 load bearings mean less room for movement and less wear in the 53" tall carriage. You can set these models up at a wide or a narrow configuration. Special arm configurations are available too.
The XPR series shows why BendPak is on top. They feature the highest quality components along with meeting the highest safety standards that go above and beyong ALI and OSHA standards. No other manufacturer offers so much, for such a reasonable price. A wide array of optional accessories to make your lifting experience safer and easier are available. Of course, the standard features included with each model far surpass most of the competition.
Serious professionals have known for decades that when you purchase a BendPak car lift, you can count on longevity and reliability. The XPR line furnishes all the tools you need to get the job done on time and on budget. Their reputation for quality and safety are legendary. And they won't put a dent in your wallet.
Every XPR-10AS comes with:
30° rotated columns The XPR-10A features columns that are rotated at a 30 degree angle. This allows for even greater clearance when trying to enter or exit the vehicle after driving it through the columns.
Two lifts in one - The Tru-Metric design of the BendPak XPR-10A asymmetric models allows you to position the auto symmetric as well as asymmetric. It's like having two lifts in one., providing versatility beyond the typical lift.
Direct-Drive two post car lift engineering - BendPak two-post lifts feature direct-drive low pressure cylinders removing the need for lifting chains or screw mechanisms you find on most common lift designs. Utilizing 2 HVLP low pressure hydraulic cylinders minimizes leaking and improves reliability. It also provides smoother operation and less costs for maintenance throughout the life of the hoist. High-volume, low pressure (HVLP) means less demand is placed on the system and that equates to less trouble down the road and greater longevity. There are less moving parts than a cylinder / chain lift and therefore less problems that can arise. The hydraulic oil flows from the pump through the cylinders, forcing the piston rod down and raising the lift carriage, along with the vehicle. A dual synchro cable equalizing system means that both sides will stay level and your technician stays safe.
Clearfloor makes work easier - Having the equalizer cables and hydraulic lines pass along at the top of the columns means your floor is clear from obstructions. This allows you to roll tool boxes, oil drains and transmission jacks without worrying about having to careully pass them over a floor plate.
Extended column optional - Allows an extra 2 feet of clearance up above to allow you to raise extra tall box trucks and sprinter vans without tripping the shut-off bar prematurely before you reach full lifting height.Gives you the flexibility of increasing the overhead clearance to maximize the vehicles you can service. This feature is standard on extra tall models.
Triple-telescoping front arms and two-stage rear arms Increases overall arm positioning for lifting a variety of different wheel base vehicles. Overall arm sweep and minimum arm reach are also extended to precisely lift vehicles that have unibody construction, OEM recommended pick-up points and wide and / or narrow wheelbase configurations.
Optional column extension - Gives you the flexibility of increasing the overhead clearance to maximize the vehicles you can service.
Wide or narrow configuration - Don't have a lot of floor space - No problem. Just set the lift up at the narrow configuration. But if you do have plenty of room in your garage, we strongly recommend setting this lift up at the wide setting. It allows for much easier loading, opening of the doors, and working around the automobile.
Low profile frame screw pads - allow you to get under most low profile sports cars that might be difficult to reach with most hoists. Can be infinitely adjusted up to 2.5 inches for the ultimate versatility.
Truck and van adapters - Many manufacturers charge extra for these vital components. These extensions come in 63 mm. This allows you to get around fuel tanks and running boards to get at hard to reach frame jacking points.
Automatic arm restraints - When you raise the vehicle, you want the arms to lock into place. The rugged design of the arm restraints means they won't fail you when you need it most. When you lower the car to the ground, they automatically disengage so that you can reposition the arms.
Tall lift carriages If you take a closer look, you'll find that the lifting carriage is a full 53 inches tall. Significantly taller than most competing brands. This greatly reduces the stress placed on the columns during the lifting process, and can greatly increase the life span of the working components as well.
Maintenance free load bearings - Some manufacturers use roller bearings that must be lubricated on a regular basis, and also cause significantly more wear on the inside of the column. The XPR lifts use utilize a innovative UHMW (untra high molecular weight polythylene) load bearings that not only are guaranteed to last the life of the lift, but also will never need lubrication.
HVLP Cylinders - Some manufacturers use high pressure cylinders which are less reliable and can leak much earlier. By using HVLP (high volume / low pressure) cylinders, the hydraulic system functions more efficiently and with less stress.
Single-point safety release - No need to walk around the the other side to disengage the other safety. Single point safety release means that you can quickly release both safeties from one side, increasing your shop's productivity. Combine that with the dual synchro equalization system means that both columns stay synchronized and level during the lifting / lowering process.
A rigid, padded safety shutoff bar automatically stops the lift should a vehicle come in contact with overhead structure
Industrial grade hydraulic cylinders - This is where many manufacturers take shortcuts. Premium single piece hydraulic cylinders are machined to precision with a pilot fitted hardened steel piston which is wrapped with custom fitted piston seals wear bands and back ups, greatly reducing the potential for leakage. The chrome rod is forged micro smooth to provide years of dependable use beyond the typical cylinder with a polished C-1045/50 finish, plated to .001" diametrically. Advanced rod seals and rod wiper construction means that abrasion and wear are diminished to a fraction of the competition. Base materials of this attention to detail means that your end product will supply years of reliable service beyond the typical mass produced cylinder.
Premium High speed hydraulics - The AC motor powers a premium high flow pump which raises and lowers significantly quicker than other brands. This means your technician spends less time waiting and more time working.
Durable powder coat finish - The powder coating process used on the all XPR series lifts is superior to others in that it is a meticulous process that takes 10 steps to complete. First, all components are inspected to ensure they are clean before being sandblasted. After sandblasting, all components are washed through 5 stages of huge phosphate tanks that can handle parts up to 25 feet long. Once cleaned, the parts are dried immediately to prevent rust. Then, the components are Outgassed, which is a process that pre-bakes the components in an oven to prep for coating. Many systems take a shortcut here. Doing that could cause problems with the final coat, including imperfections like chipping and bubbling, which is common on many inferior models. High temperature masking tape and silicone plugs are then used to cover any holes or components that need to be covered. Next, all components are given a thinner wipe to remove any possible prints or debris that could have occurred. After that, they are suspended on an electrostatically grounded conveyor line. and an electrostatic spray gun applies the powder. Finally, the parts are cured in 400 degree ovens for 3/4 of an hour.
All this leads to the most durable powder coat finish in the industry, capable of standing up to the most harsh environments and chemicals you can dish out.
Detailed Instruction Manual - These are Included as standard with every lift. They include maintenance as well as installation instructions. Also included are safety and maintenance decals, along with a lifting point guide for vehicles and a placard to inform personnel on proper maintenance and safety procedure.
*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Contact ASE for a complete list of BendPak Lifts that are ALI Certified.
Why Should you purchase a Bend Pak lift from ASEdeals?
1) Guaranteed Lowest Prices - Listen, we monitor our competition's prices. We know we usually have the lowest price on most of our equipment most of the time. In the unlikely event you find any of our automotive lifts advertised anywhere on the web for less, just tell us where you saw them, and we'll beat them. It's that simple. Our prices will not be beaten!
2) Largest BendPak distributor -This means that you enjoy the benefit of our size. Not only does this allow us to offer the best pricing available, If you have any warranty issues that you feel are not being addressed quickly enough, or to your satisfaction, we have the influence with the manufacturer to get your issue resolved right away.
3) Years of Experience - So many internet companies have popped up over the past few years, claiming to have all kinds of experience, and then when you dig a little deeper, you'll find out that they've only been around for a few years. We've been carrying Bend Pak equipment for over 17 years now. When you call and speak to us, you're not getting just an order taker that knows nothing about the product. We know these products better than most. Not only will get you answers to your questions, we will make sure that you get the proper lift for your application.
4) Reputation - Right along with the years of experience comes our reputation. Check out our reputation on all of the various car enthusiast forums out there, such as Garage Journal or Corvette Forum. You'll find countless satisfied customers, praising not only our prices, but also our integrity, honesty and ability to help you choose the right product for your application. And then, there's our hundreds of satisfied customer pictures and testimonials to back it up. We'll gladly put our reputation up against anybody's.
Features and Specs
- 10,000‐lb lifting capacity
- Expandable top beam accommodates wide or narrow drive‐thru configuration
- Double‐telescoping screw pads offer increased versatility
- Added overhead safety shutoff bar
- Exclusive Tru‐Metric arm design for more versatile arm positioning
- 30° rotated single‐piece columns
- Single‐point safety release
- Drop‐end arms provide a lower pad height
- Dual hydraulic direct‐drive cylinders
- Oversized 53" tall carriage for superior strength and durability
- Electric / hydraulic power system
- Large, 17" x 19" A36 steel base plate
- Self‐lubricating dura‐glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 3"
- Automatic arm restraints
- Heavy‐duty 1/2" aircraft‐quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- 4‐piece 63mm stackable adapter set comes standard
- Triple‐telescoping arm design
- Versatile drop‐in contact pads with stackable adapter
- ETL Approved.
- Lifting capacity*:10,000 lbs. / 4,536 kg
- *Max capacity / front axle: 5,000 lbs. / 2,268 kg
- *Max capacity / rear axle: 5,000 lbs. / 2,268 kg
- Overall height: 145" / 3,683 mm
- Overall width - NARROW CONFIG: 137" / 3,480mm
- Overall width - WIDE CONFIG: 145" / 3,683 mm
- Width (outside of columns) - NARROW: 128" / 3,251 mm
- Width (outside of columns) - WIDE: 141" / 3,581 mm
- Floor to overhead switch*: 141" / 3,581 mm
- Inside columns - NARROW: 99" / 2,515 mm
- Inside columns - WIDE: 112" / 2,845 mm
- Front arm min reach: 23-1/2" / 597 mm
- Front arm max reach: 45-1/2" / 1,156 mm
- Rear arm min reach: 42-1/2" / 1,079 mm
- Rear arm max reach: 60" / 1,524 mm
- Min pad height: 4" / 102 mm
- Rise: 69" / 1,753 mm
- Max Lift Height (Screw Pad Only): 75.75" / 1924 mm
- Max Lift Height ( Screw Pad & 63mm Adapter): 78.25" / 1987 mm
- Drive-thru clearance - NARROW: 89" / 2,261 mm
- Drive-thru clearance - WIDE: 102" / 2,591 mm
- Motor: 220 VAC / 60 Hz / 1 Ph
- Time to full rise: 45 sec
- Max load per arm: 2,500 lbs. / 1,134 kg
*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult www.autolift.org for a complete list
