Dannmar DT-50A Tire Changer + DB-70 Wheel Balancer + Weights Combo

In stock
SKU
5140162
Our Price $6,084.00 Regular Price $6,590.00

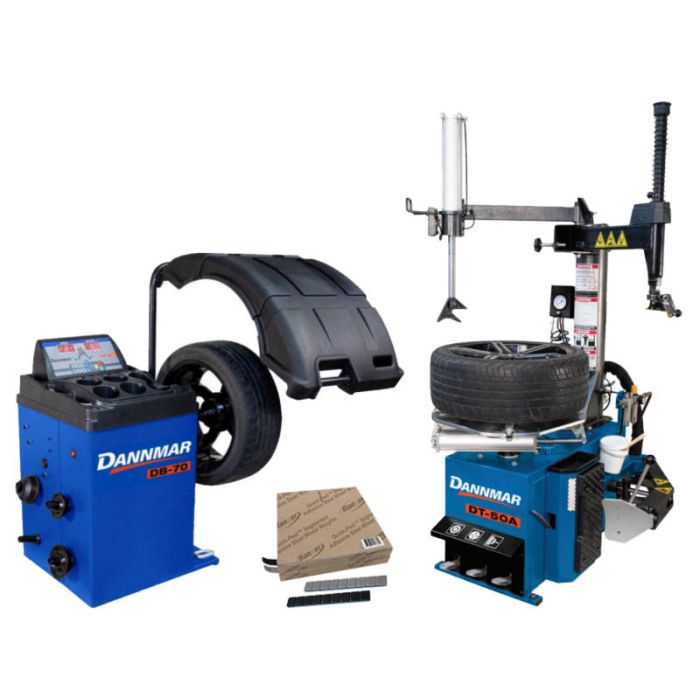

Dannmar DT-50A Swing Arm Tire Changer with Assist Tower +
Dannmar DB-70 Automatic Wheel Balancer 10"-28" Rim Capacity +
Tape Wheel Weights / Combo Rolls (Black & Silver 1,400 pcs.) Combo
Take advantage of Dannmar's value packaged deals. This Dannmar wheel service package consists of a DT-50A tire changer with a swing arm that is equipped with a handy power-assist tower to help when working on sometimes difficult, lower-profile performance tires with stiffer sidewalls. The swing-arm on the DT-50A is one of this tire changer's most useful features. Because it doesn't tilt back, it can be installed flush against a wall. The tire changer's controls are conveniently mounted upfront and logically arranged for both speed and ease-of-use. Constructed to handle the needs of on-the-go shops with its sturdy body, rigid hexagonal vertical shaft and hardened-steel horizontal outrigger support arm that eliminates flex during tire service operations. This also reduces the risk of damaging modern allow wheels.

The Dannmar DB-70 wheel balancer works on wheels up to a 28" diameter. It is very accurate and a dependable no-frills balancer that features proprietary Digital Sensor Technology for critical reliability and repeatability. Dannmar's wheel balancer automatically determines the exact weight needed for optimal balance and uses brightly displayed LEDs that show the correct amount and location of weights in just six seconds. And best of all this special package provides more for less.

Ranger Tape Wheel Weights Includes Tape Wheel Weights / Combo Rolls (Black & Silver 1,400 pcs. - 0.25 oz. - 1/2" Wide - 22 lbs.)
These combo Quick-Peel adhesive steel wheel weights are an effective and environmentally friendly way to quickly balance wheels using as little weight as possible.

Description

Dannmar Dannmar DT-50A Swing Arm Tire Changer with Assist Tower 12"-26" Rim Capacity +
Dannmar DB-70 Automatic Wheel Balancer 10"-28" Rim Capacity +
Tape Wheel Weights / Combo Rolls (Black & Silver 1,400 pcs.) Combo
Take advantage of Dannmar's value packaged deals. This Dannmar wheel service package consists of a DT-50A tire changer with a swing arm that is equipped with a handy power-assist tower to help when working on sometimes difficult, lower-profile performance tires with stiffer sidewalls. The swing-arm on the DT-50A is one of this tire changer's most useful features. Because it doesn't tilt back, it can be installed flush against a wall. The tire changer's controls are conveniently mounted upfront and logically arranged for both speed and ease-of-use. Constructed to handle the needs of on-the-go shops with its sturdy body, rigid hexagonal vertical shaft and hardened-steel horizontal outrigger support arm that eliminates flex during tire service operations. This also reduces the risk of damaging modern allow wheels.

The Dannmar DB-70 wheel balancer works on wheels up to a 28" diameter. It is very accurate and a dependable no-frills balancer that features proprietary Digital Sensor Technology for critical reliability and repeatability. Dannmar's wheel balancer automatically determines the exact weight needed for optimal balance and uses brightly displayed LEDs that show the correct amount and location of weights in just six seconds. And best of all this special package provides more for less.

Ranger Tape Wheel Weights Includes Tape Wheel Weights / Combo Rolls (Black & Silver 1,400 pcs. - 0.25 oz. - 1/2" Wide - 22 lbs.)
These combo Quick-Peel adhesive steel wheel weights are an effective and environmentally friendly way to quickly balance wheels using as little weight as possible.

Features and Specs

Dannmar DT-50A Swing Arm Tire Changer with Assist Tower Features
  • Swing Arm
  • Single-Assist Tower
  • High Torque Electric Turntable
  • Alloy Steel Mount and Demount Head
  • Wheel Clamping Method 4 Clamps Internal Rim Clamping
  • Capacity 12" - 26" (305 mm - 660 mm)
  • Maintenance-Free Gearbox
  • Aluminum Pneumatic Cylinders
  • High Pressure Polyurethane Pneumatic Tubing
  • Inflation Gauge with Integrated Air Dump Valve
  • Tool Tray / Storage
  • Enhanced Bead Breaker Blade
  • Turbo-Blast Bead Seater
  • Oiler / Lubricator
  • Soap Bucket
  • Air Regulator
  • Inflation Restraint
  • Forged-Steel Foot Pedals
Dannmar DT-50A Swing Arm Tire Changer with Assist Tower Specifications
  • Motor: 110-VAC, 50-60 Hz, 1-Ph
  • Drive System Type: Electric / Air
  • Tower Design: Rigid Fixed / Swing Arm
  • Power Assist Tower: Single
  • Bead Seating System: Turbo Blast / Bead Seating
  • Air Requirement: 110-175 PSI (8-10 BAR)
  • Wheel Clamping Method: 4 Clamps - Internal / External
  • Table Clamping System: Dual Pneumatic Cylinders
  • Bead Breaking System: Pneumatic Blade
  • Tower Design: Fixed
  • Internal Rim Clamping Capacity: 14" - 26" (356 mm - 660 mm)
  • External Rim Clamping Capacity: 12" - 22" (305 mm - 559 mm)
  • Turntable Rim Width Capacity: 3" - 15" (76 mm - 381 mm)
  • Bead Breaker Rim Width Capacity: 3" - 14" (76 mm - 356 mm)
  • Maximum Tire Diameter: 47" (1,194 mm)
  • Noise: <70 dB


Dannmar DB-70 Automatic Wheel Balancer Features
  • (6) Dynamic Balancing Modes
  • (1) Static Balancing Mode
  • Manual Wheel Offset Distance Setting
  • Auto-Start when Hood is Lowered
  • Wheel Holding Manual Brake Pedal
  • Truck Cone / Spacer Ring Adapter Set
  • No-Mar Rear Cone Mount Pressure Cup
  • Quick-Release and Mount Hub Nut
  • LED Rolling Wheel Weight Displays
  • Easy-To-Use Controls
Dannmar DB-70 Automatic Wheel Balancer Specifications
  • Motor: 110-230 VAC, 50-60 Hz, 1-Ph
  • Cycle Time: 7 seconds
  • Balancing Modes: 6 Dynamic / 1 Static
  • Drive System: Serpentine Poly-V Belt
  • Wheel Braking: Lever Caliper Brake / Foot Pedal
  • Cones Included: 4
  • Max. Tire Diameter: 49" (1,247 mm)
  • Max. Tire Weight: 150 lbs. (68 kg)
  • Wheel Diameter Capacity: 10" - 28" (254 mm - 711 mm)
  • Wheel Width Capacity: 1.5" - 20" (38 mm - 508 mm)
  • Balancing Increments: 0.25 or 0.01 ounce
  • Balancing Speed: 260 RPM
  • Accuracy: +- 1 Gram (.035 oz)
  • Noise: <70 dB


Dannmar Wheel Service Equipment One-Year Limited Warranty
  • One Year (12-Months) Warranty on Equipment Structure [*] [**]
  • One Year (12-Months) Warranty on Operating Components [*] [**]
  • One Year (12-Months) Free-Shipping** on Ground-Freight Charges Related to Warranty Performance [*] [**]

*As determined by Warrantor in its sole discretion. Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.

**For all Dannmar brand tire changers, wheel balancers or brake lathes manufactured on or following 6/1/2020.
